SSI-Schäfer Frame P95 - 5200 x 1050 mm - compleet
SSI Schäfer P95 complete frame 5200x1050 mm
Galvanized SSI-Schäfer racking frame type P95 for pallet racking, ideal as a replacement part or extension. Supplied complete with bracing, base plates and fastening material. New.
Specifications
- Type: SSI Schäfer P95
- Dimension: 5200x1050 mm
- 2 uprights 90 mm wide
- Galvanized, complete incl. bracing/base plates/bolt set
SSI-Schäfer Frame P95 - 5800 x 1050 mm - compleet
Previous

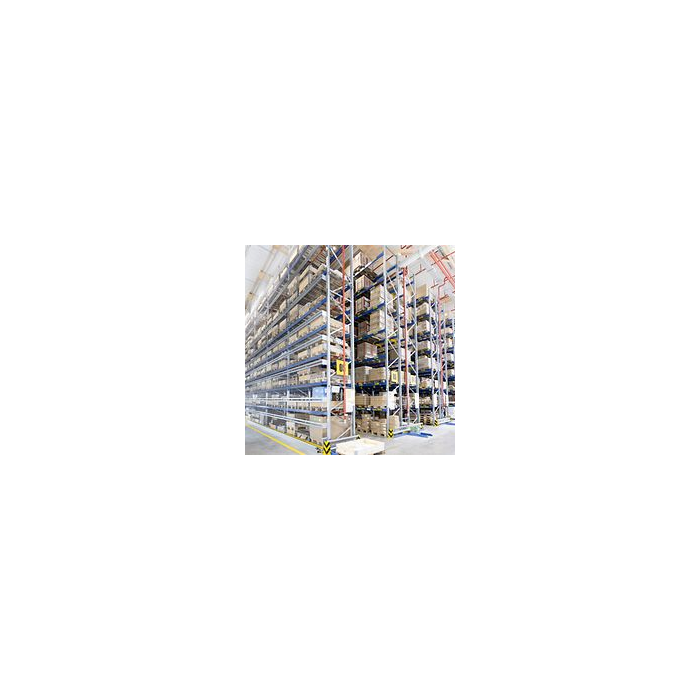

Galvanized frame as a stable foundation for your pallet racking
This complete SSI Schäfer frame from the P95 series forms the load-bearing side of a pallet racking system and is designed for safe, straight assembly of your warehouse racking. With uprights of 5200 mm and a frame depth of 1050 mm, this pallet racking component is suitable when you need height and want to achieve consistent assembly within a P95 configuration. The galvanized finish is practical in environments where durability and corrosion protection are important.
Application in the warehouse
A frame is placed on the floor and together with the beams carries the load of pallets and storage carriers. This frame is supplied including base plates, horizontal and diagonal bracing and the corresponding fastening material, so you have a complete side section for assembly and alignment of the racking bay.
Practical for replacement or extension
Ideal for businesses that want to replace a damaged frame or extend an existing SSI Schäfer P95 installation without collecting loose parts. The 90 mm wide P95 uprights provide a robust base and help reduce downtime during modifications or maintenance.
Possible beam configurations and pallet heights
For a frame height of 5200 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2550 | 2400 | 2300 |
| 1st beam | 5100 | 2400 | 2300 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1700 | 1550 | 1450 |
| 1st beam | 3400 | 1550 | 1450 |
| 2nd beam | 5100 | 1550 | 1450 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3850 | 1100 | 1000 |
| 3rd beam | 5100 | 1100 | 1000 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1050 | 900 | 800 |
| 1st beam | 2100 | 900 | 800 |
| 2nd beam | 3100 | 850 | 750 |
| 3rd beam | 4100 | 850 | 750 |
| 4th beam | 5100 | 850 | 750 |
| SKU | RV1-975-0520-105 |
|---|---|
| Verwachte levertijd | 5-7 Weken |
| Country of Manufacture | Germany |
| Manufacturer | SSI Schäfer |
| Artikelnummer Fabrikant | RV1-975-0520-105 |
| Product Group | Complete Frames |
| Frame Type | P95 |
| Condition | New |
| Length (mm) | 5200 |
| Width (mm) | 90 |
| Depth (mm) | 1050 |
| Finish | Galvanized |
| Delivery Time Indication | 5-7 weeks |
