Mecalux beam 2C-S 1515 - 2225x150 mm
New Mecalux 2C-S beam 2225x150 mm
Robust new Mecalux 2C-S 1515 beam for pallet racking (2225x150x50 mm) with integrated locking pin, ideal as a replacement beam for warehouse fit-out for quick assembly and secure locking.

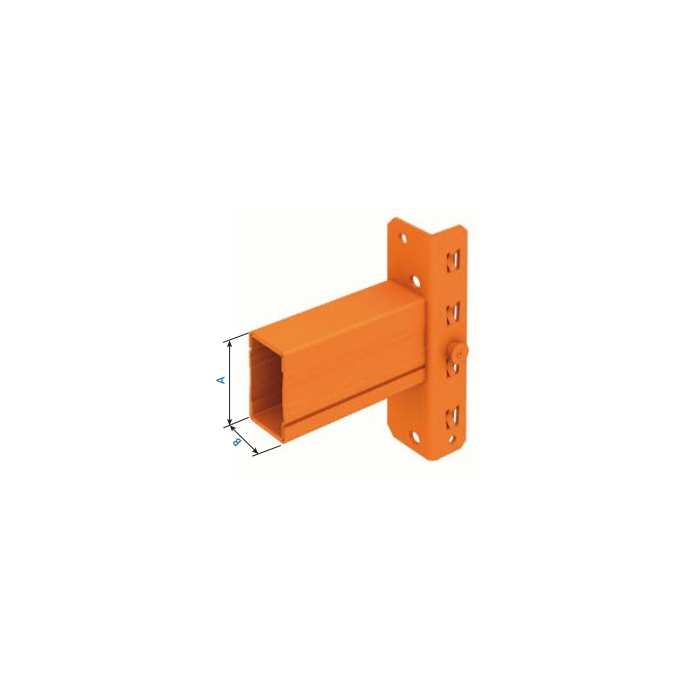

Specifications Mecalux 2C-S beam
- Brand/type: Mecalux 2C-S 1515
- Size: 2225x150x50 mm
- Locking: integrated locking pin
- Condition: new
- Suitable for: two block pallets (1000 x 1200 mm) side by side
Mecalux beam 2C-S 1515 - 1825x150 mm
Previous
Robust pallet racking component beam for secure bay layout and quick assembly
This Mecalux 2C-S beam is a steel beam for pallet racking that ensures stable and reliable support of your storage levels. With a length of 2225 mm and a profile height of 150 mm, this component is intended for building up or restoring a bay width in a Mecalux system, where safety and consistent loading are key. The beam is new and features an integrated locking pin for immediate locking.
Application in the warehouse
In daily warehouse logistics, beams determine the layout of your racking and thus the available pallet positions. This 2C-S beam is installed between the uprights to form a level and, thanks to the locking mechanism, helps prevent unwanted detachment due to vibration or impact.
Practical for replacement or expansion
Suitable as a replacement beam in case of damage or as an expansion when reconfiguring your pallet racking. This gives you a consistent Mecalux 2C-S solution with a standard size (2225x150x50 mm) and installation that can be carried out quickly by your technical department.
Suitable for pallets
With a beam length of 2225 mm, this pair of beams accommodates two block pallets (1000 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 1000 mm. Alternatively, a combination of 1 europallet and 1 block pallet (two pallets in total) also fits. This size matches bays specifically configured for this type of pallet.
| SKU | 2C-S1515-2225-N |
|---|---|
| Weight | 15.100000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201461 |
| Product Group | Beam |
| Beam Type | 2C-S |
| Condition | New |
| Beam Length | 2225 |
| Height (mm) | 150 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
