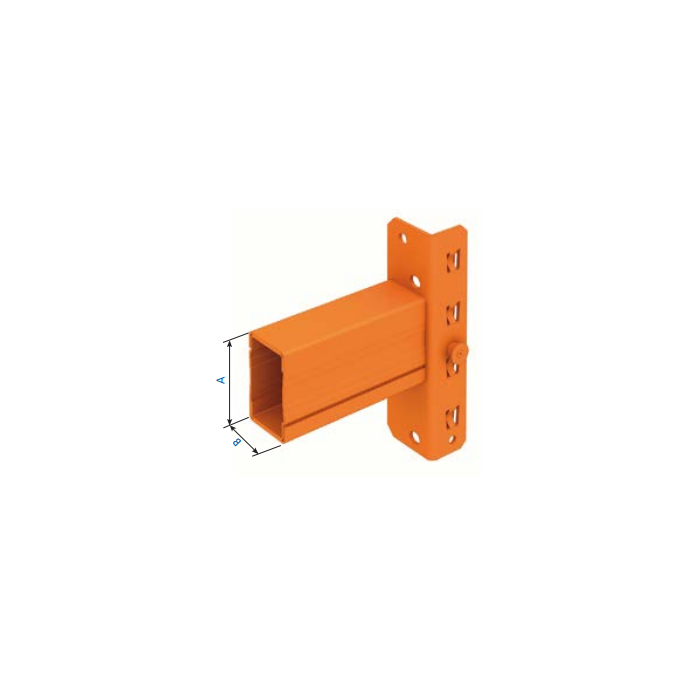

Mecalux beam 2C-S 1315 - 1825x130 mm
New Mecalux 2C-S beam 1825x130x50 mm
Robust Mecalux 2C-S 1315 beam for pallet racking, new and ideal as a replacement beam for warehouse fit-out; 1825 mm with integrated locking pin for quick installation and secure locking.
Specifications
- Brand/type: Mecalux 2C-S 1315
- Size: 1825x130x50 mm
- Locking: integrated locking pin
- Condition: new
- Suitable for: 2 europallets (800x1200 mm) side by side
Mecalux beam 2C-S 1315 - 3800x130 mm
Previous
Robust beam for quick installation and secure locking in your pallet racking
This new Mecalux 2C-S beam is designed as a reliable load-bearing beam within a pallet racking system. With a length of 1825 mm and a profile height of 130 mm, it offers a solid basis for building up or repairing a racking bay. The integrated locking pin helps secure the connection with the frame, so the beam stays neatly in place during daily use.
Application in the warehouse
In warehouses where pallets need to be stored efficiently and safely, beams form the core of every racking structure. This 2C-S version is used to create levels between the uprights and contributes to a stable configuration, suitable for intensive logistics movements and varying loads.
Practical for replacement or expansion
Ideal when you want to replace a damaged beam or expand an existing Mecalux setup with an extra level. You get a new component with consistent dimensions (1825x130x50 mm) and practical locking, so you can quickly continue building without unnecessary downtime.
Suitable for pallets
With a beam length of 1825 mm, this pair of beams provides space for two europallets (800 x 1200 mm) side by side, without the pallets overhanging the beam. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 800 mm. This size is therefore often chosen for bays set up exclusively for europallets.
| SKU | 2C-S1315-1825-N |
|---|---|
| Weight | 15.100000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201452 |
| Product Group | Beam |
| Beam Type | 2C-S |
| Condition | New |
| Beam Length | 1825 |
| Height (mm) | 130 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
