Mecalux beam 2C-S 1515 - 2850x150 mm
New Mecalux beam 2850 mm (2C-S)

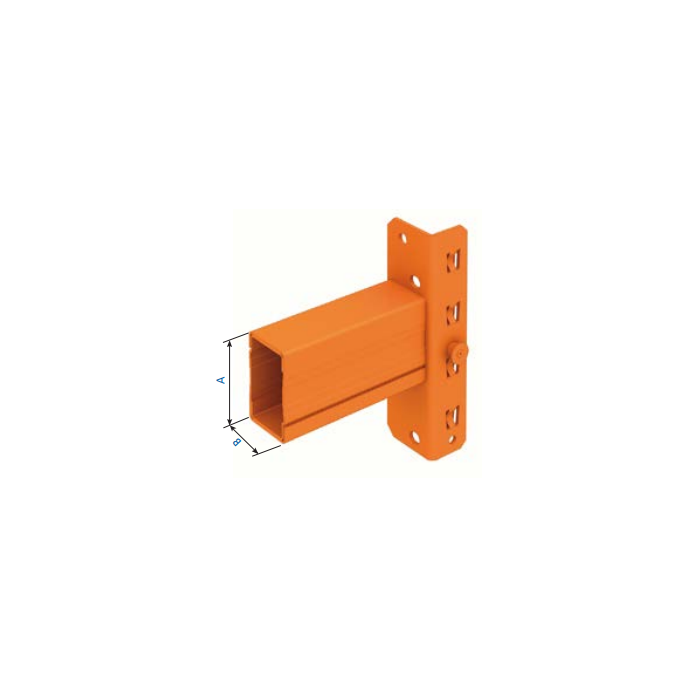

New Mecalux beam 2C-S for pallet racking. Size 2850 x 150 x 50 mm, material thickness 1.5 mm, supplied with 2 locking pins.
Specifications Mecalux beam
- Brand: Mecalux
- Type: 2C-S
- Condition: new
- Size: 2850 x 150 x 50 mm
- Material thickness: 1.5 mm
- Includes: 2 locking pins
- Suitable for: three euro pallets (800 x 1200 mm) side by side
Mecalux beam 2C-S 1315 - 2625x130 mm
Previous
New beam for safe and stable pallet storage
This new Mecalux beam (2C-S) is designed to quickly make a pallet racking level stable and usable again, for example when replacing or expanding an existing racking bay. With a length of 2850 mm and a profile size of 150 x 50 mm, it forms a sturdy base for supporting and positioning pallets within your racking configuration. The material thickness of 1.5 mm contributes to a robust construction. The 2 included locking pins ensure correct locking in the frame.
Application in the warehouse
In daily logistics, the right beam determines the stability and load capacity of each storage level. This beam is used when building or repairing racking bays, for example in case of damage repair, reconfiguration, or adding extra levels within an existing Mecalux pallet racking.
Practical for replacement or expansion
For technical services, warehouse fitters, and maintenance parties, this is a practical choice when a suitable part is needed quickly. The correct size and locking mechanism contribute to a neat, safe installation without surprises afterwards.
Suitable for pallets
With a beam length of 2850 mm, three euro pallets (800 x 1200 mm) fit side by side on this pair of beams. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 850 mm. This size fits bays specifically arranged for this type of pallet.
| SKU | 2C-S1515-2850-N |
|---|---|
| Weight | 15.100000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100212024 |
| Product Group | Beam |
| Beam Type | 2C-S |
| Condition | New |
| Beam Length | 2850 |
| Height (mm) | 150 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
