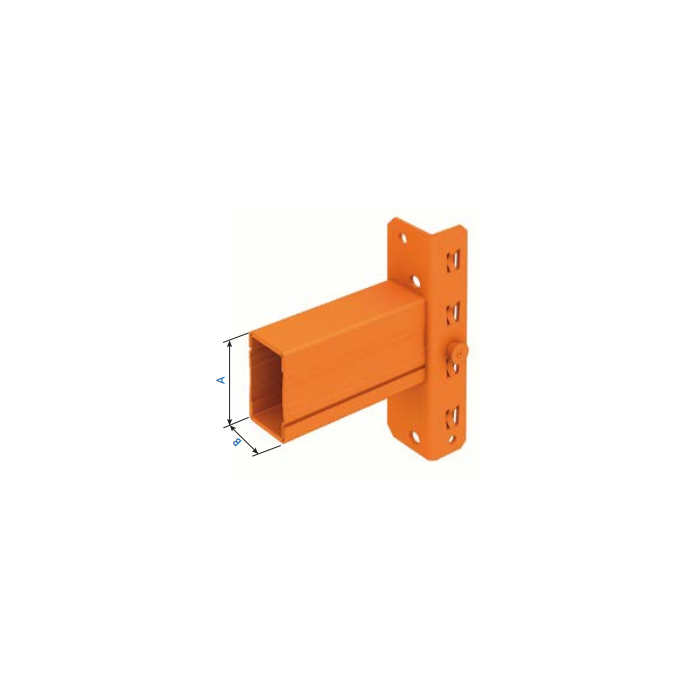

Mecalux beam 2C-S 1115 - 2625x110 mm
New Mecalux beam 2625 mm (2C-S)
New Mecalux beam 2C-S for pallet racking. Size 2625 x 110 x 50 mm, material thickness 1.5 mm, supplied with 2 locking pins.
Specifications Mecalux beam
- Brand: Mecalux
- Type: 2C-S
- Condition: new
- Dimension: 2625 x 110 x 50 mm
- Material thickness: 1.5 mm
- Includes: 2 locking pins
- Suitable for: two block pallets, or two euro pallets placed rotated 90 degrees, or two loads of maximum 1200 mm wide (for example big bags)
Mecalux beam 2C-S 1718 - 3800x160 mm
Previous
Robust new beam as a reliable support for your pallet racking
This new Mecalux beam of type 2C-S is used in pallet racking as a support between two uprights, thereby determining the bay width and the layout of your storage. The length of 2625 mm and the profile of 110 x 50 mm make this beam suitable for regular warehouse applications. The material thickness of 1.5 mm contributes to a robust construction. Includes 2 locking pins for safe assembly.
Application in the warehouse
A beam connects two uprights and determines the bay width and the layout of your storage. This version is suitable for restoring a level, restoring a proper bay size and ensuring safe handling with a forklift or reach truck.
Practical for replacement or expansion
For companies that value continuity, this is an efficient choice for maintenance or refurbishment of an existing rack. You replace specifically with the correct Mecalux beam and maintain consistent dimensions, so that your racking materials remain uniform and operational.
Suitable for pallets
With a beam length of 2625 mm, this beam pair accommodates two block pallets, or two euro pallets placed rotated 90 degrees, or two loads of maximum 1200 mm wide (for example big bags). According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between the pallets/loads is maintained, which amounts to an average maximum width of 1200 mm per load.
| SKU | 2C-S1115-2625-N |
|---|---|
| Weight | 15.100000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201446 |
| Product Group | Beam |
| Beam Type | 2C-S |
| Condition | New |
| Beam Length | 2625 |
| Height (mm) | 110 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
