Mecalux beam 2C-S - 2700 x 110 mm
New Mecalux beam 2700 mm (2C-S)

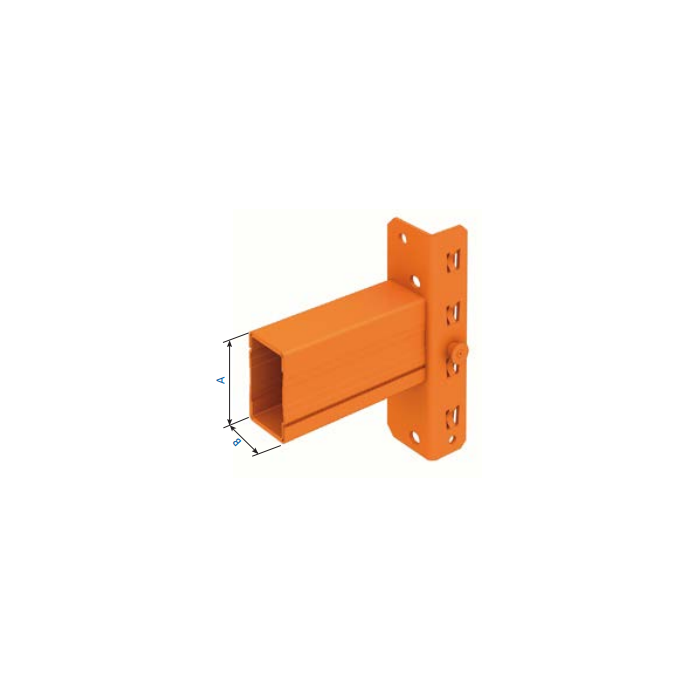

New Mecalux beam 2C-S for pallet racking. Size 2700 x 110 x 50 mm, material thickness 1.5 mm, supplied with 2 locking pins.
Specifications Mecalux beam
- Brand: Mecalux
- Type: 2C-S
- Condition: new
- Dimensions: 2700 x 110 x 50 mm
- Material thickness: 1.5 mm
- Includes: 2 locking pins
- Suitable for: three euro pallets (800 x 1200 mm) side by side
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 15 | 15% | €74.78 | |
| 30 | 22% | €68.62 | |
| 50 | 30% | €61.59 |
Robust new beam as a reliable support for your pallet racking
This new Mecalux beam of type 2C-S is intended as a horizontal support beam in a pallet racking system and, together with the uprights, forms the level on which pallets are safely stored. With a length of 2700 mm and a profile of 110 x 50 mm, this is a practical choice for warehouses that want to maintain a Mecalux racking configuration with matching components. The material thickness of 1.5 mm contributes to a robust construction. Supplied including 2 locking pins for secure locking.
Application in the warehouse
In daily logistics, the right beam determines the stability and load capacity of each storage level. This beam is used when building or repairing racking bays, for example in damage repair, reorganisation, or adding extra levels within an existing Mecalux pallet racking system.
Practical for replacement or expansion
For technical services, warehouse fitters and maintenance parties, this is a practical choice when a matching component is needed quickly. The correct size and locking contribute to a neat, safe installation without surprises afterwards.
Suitable for pallets
With a beam length of 2700 mm, three euro pallets (800 x 1200 mm) fit side by side on this pair of beams. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 800 mm. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | 2C-S1115-2700 |
|---|---|
| Weight | 15.100000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201447 |
| Product Group | Beam |
| Beam Type | 2C-S |
| Condition | New |
| Beam Length | 2700 |
| Height (mm) | 110 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
