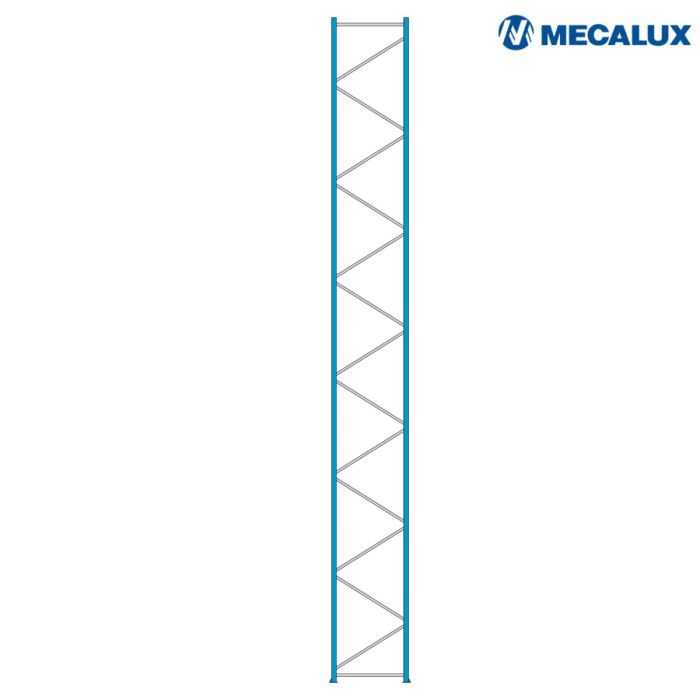

Mecalux Frame 122 - 9500 x 1100 mm - compleet
Mecalux frame complete 9500x1100 mm
Complete used Mecalux Type 122 frame for pallet racking, ideal for replacing or expanding your warehouse racking.
Specifications
- Type: Mecalux 122
- Size: 9500x1100 mm
- 2 uprights 122 mm wide
- Incl. base plates, horizontal/diagonal bracing
- Incl. fixing material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €610.50 | |
| 10 | 17% | €563.01 | |
| 20 | 25% | €508.75 | |
| 40 | 30% | €474.83 |
Mecalux Frame 122 - 10.000 x 1100 mm - compleet
Previous
Complete frame as a sturdy base for your pallet racking
This Mecalux frame from type 122 is a complete pallet racking component for building or repairing a safe racking section. It consists of two uprights with a profile width of 122 mm and an upright height of 9500 mm, fitted with base plates for stable anchoring to the floor. Thanks to the included horizontal and diagonal bracing, the frame forms a rigid, reliable upright structure on which beams and levels can be built.
Application in the warehouse
Frames determine the load-bearing structure and alignment of your pallet racking. This complete frame is installed as a starting or add-on bay in a row of racking and ensures that load and forces are properly transferred to the floor. Ideal for new installations, reconfiguration, or damage repair, where a complete frame works faster and more consistently than separate components.
Practical for replacement or expansion
For technical services and warehouse fitters, this is an efficient choice: one set with uprights, bracing, base plates, and matching fixing material. This shortens assembly time and reduces the risk of missing components during maintenance or expansion within a Mecalux type 122 environment.
Possible beam configurations and pallet heights
For a frame height of 9500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2350 | 2200 | 2100 |
| 1st beam | 4700 | 2200 | 2100 |
| 2nd beam | 7050 | 2200 | 2100 |
| 3rd beam | 9400 | 2200 | 2100 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1900 | 1750 | 1650 |
| 1st beam | 3800 | 1750 | 1650 |
| 2nd beam | 5700 | 1750 | 1650 |
| 3rd beam | 7550 | 1700 | 1600 |
| 4th beam | 9400 | 1700 | 1600 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4750 | 1400 | 1300 |
| 3rd beam | 6300 | 1400 | 1300 |
| 4th beam | 7850 | 1400 | 1300 |
| 5th beam | 9400 | 1400 | 1300 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2700 | 1200 | 1100 |
| 2nd beam | 4050 | 1200 | 1100 |
| 3rd beam | 5400 | 1200 | 1100 |
| 4th beam | 6750 | 1200 | 1100 |
| 5th beam | 8100 | 1200 | 1100 |
| 6th beam | 9400 | 1150 | 1050 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1200 | 1050 | 950 |
| 1st beam | 2400 | 1050 | 950 |
| 2nd beam | 3600 | 1050 | 950 |
| 3rd beam | 4800 | 1050 | 950 |
| 4th beam | 5950 | 1000 | 900 |
| 5th beam | 7100 | 1000 | 900 |
| 6th beam | 8250 | 1000 | 900 |
| 7th beam | 9400 | 1000 | 900 |
| SKU | Mec-F122-9500x1100 |
|---|---|
| Weight | 138.500000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106591 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 9500 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
