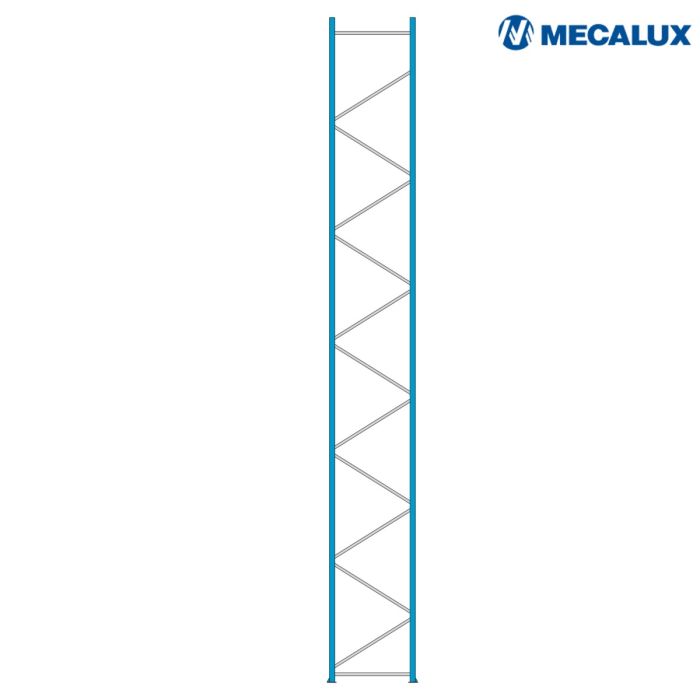

Mecalux Frame 122 - 9000 x 1100 mm - compleet
Complete Mecalux frame type 122 9000x1100 mm
Used Mecalux pallet racking frame for replacement/extension: complete with 2 uprights 122 mm, bracing and base plates.
Specifications
- Brand: Mecalux
- Type: 122 (upright 122 mm)
- Size: 9000 x 1100 mm
- Condition: used
- Includes: base plates, horizontal/diagonal bracing, mounting hardware
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €630.28 | |
| 10 | 17% | €581.26 | |
| 20 | 25% | €525.23 | |
| 40 | 30% | €490.22 |
Mecalux Frame 122 - 9500 x 1100 mm - compleet
Previous
Complete frame as a stable base for your pallet racking setup
This complete Mecalux frame of type 122 forms the supporting side structure of your pallet racking and is intended for professional warehouse environments where reliability and dimensional accuracy matter. The frame consists of two uprights with a profile width of 122 mm and an upright length of 9000 mm, built up with base plates and a set of horizontal and diagonal bracing for a solid, rigid construction. Includes matching mounting hardware, so you can install the frame directly within a Mecalux Type 122 system.
Application in the warehouse
Frames determine the height and stability of a racking row and are essential for the safe storage of pallets. This frame is used as an end or intermediate frame in a row setup, where the bracing absorbs the lateral forces and the base plates ensure a solid anchoring to the floor.
Practical for replacement or extension
Ideal when you want to replace a damaged frame or extend your existing Mecalux Type 122 racking with a complete, consistently built frame unit. Thanks to the included components, you minimize downtime and keep the assembly efficient and clear.
Possible beam configurations and pallet heights
For a frame height of 9000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2250 | 2100 | 2000 |
| 1st beam | 4500 | 2100 | 2000 |
| 2nd beam | 6700 | 2050 | 1950 |
| 3rd beam | 8900 | 2050 | 1950 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3600 | 1650 | 1550 |
| 2nd beam | 5400 | 1650 | 1550 |
| 3rd beam | 7150 | 1600 | 1500 |
| 4th beam | 8900 | 1600 | 1500 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 6000 | 1350 | 1250 |
| 4th beam | 7450 | 1300 | 1200 |
| 5th beam | 8900 | 1300 | 1200 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5150 | 1100 | 1000 |
| 4th beam | 6400 | 1100 | 1000 |
| 5th beam | 7650 | 1100 | 1000 |
| 6th beam | 8900 | 1100 | 1000 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1150 | 1000 | 900 |
| 1st beam | 2300 | 1000 | 900 |
| 2nd beam | 3400 | 950 | 850 |
| 3rd beam | 4500 | 950 | 850 |
| 4th beam | 5600 | 950 | 850 |
| 5th beam | 6700 | 950 | 850 |
| 6th beam | 7800 | 950 | 850 |
| 7th beam | 8900 | 950 | 850 |
| SKU | Mec-F122-9000x1100 |
|---|---|
| Weight | 130.900000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106587 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 9000 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
