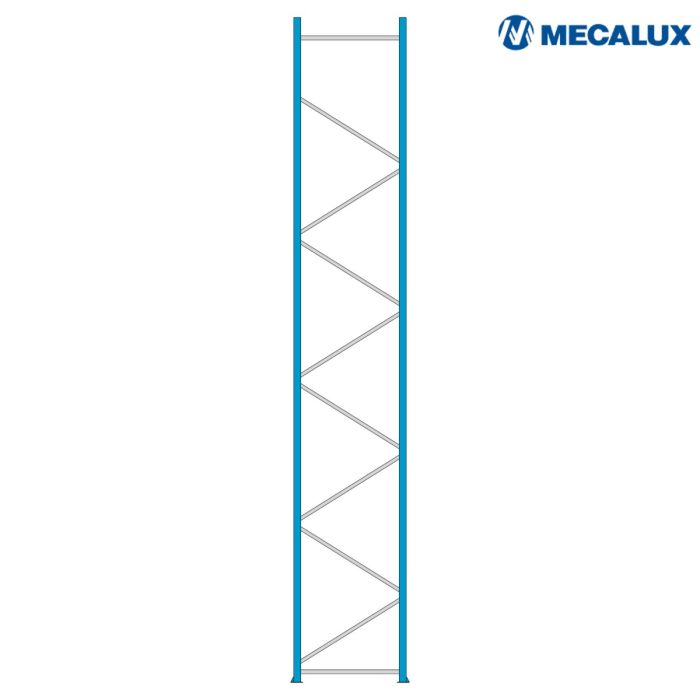

Mecalux Frame 122 - 6500 x 1100 mm - compleet
Complete Mecalux frame Type 122
Complete used frame for pallet racking, ideal for replacement or expansion. Mecalux Type 122 with uprights 6500 mm and 1100 mm.
Specifications
- Brand: Mecalux
- Type: 122 (122 mm)
- Dim.: 6500 x 1100 mm
- Incl.: 2 uprights, base plates, horizontal/diagonal bracing, mounting materials
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €479.60 | |
| 10 | 17% | €442.30 | |
| 20 | 25% | €399.67 | |
| 40 | 30% | €373.02 |
Mecalux Frame 122 - 7000 x 1100 mm - compleet
Previous
Complete frame as a sturdy pallet racking component for high warehouse setups
This complete Mecalux frame is intended as the load-bearing side section of a pallet racking system and forms the basis for a safe and stable storage setup. The frame consists of two uprights of type 122 (122 mm wide) with an upright length of 6500 mm and is supplied with base plates, horizontal and diagonal bracing and the corresponding mounting materials. Ideal when you want to install a frame without gathering loose components.
Application in the warehouse
In a pallet warehouse, the frame transfers the load from the beams and pallets to the floor. The combination of bracing and base plates creates a construction suitable for high racking, where alignment and stability are essential for safe working and efficient order picking.
Practical for replacement or expansion
For technical services, warehouse managers and racking installers, this is a practical choice for damage repair, renovation or expansion of an existing Mecalux Type 122 setup. You receive a fully assembled frame package, keeping assembly time and workflow disruption on the shop floor to a minimum.
Possible beam configurations and pallet heights
For a frame height of 6500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2150 | 2000 | 1900 |
| 1st beam | 4300 | 2000 | 1900 |
| 2nd beam | 6400 | 1950 | 1850 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4800 | 1450 | 1350 |
| 3rd beam | 6400 | 1450 | 1350 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5150 | 1100 | 1000 |
| 4th beam | 6400 | 1100 | 1000 |
| SKU | Mec-F122-6500x1100 |
|---|---|
| Weight | 94.900000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106565 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 6500 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
