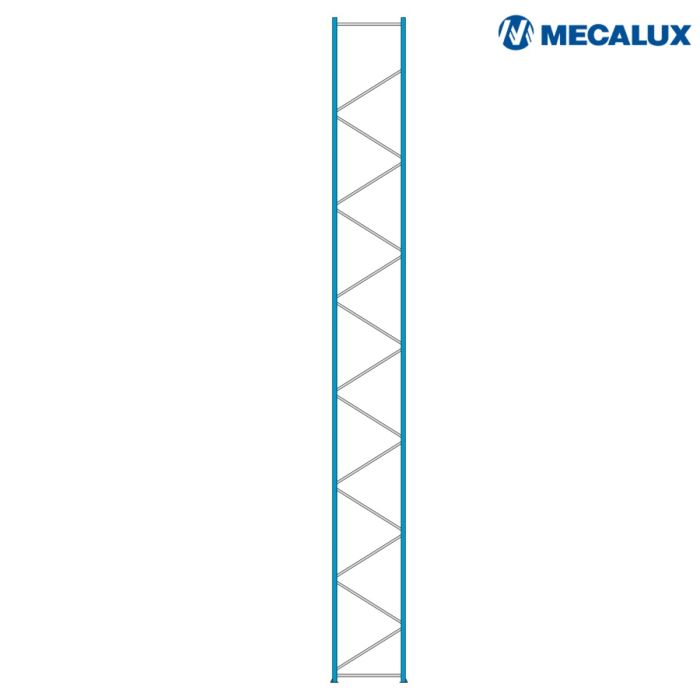

Mecalux Frame 122 - 10.000 x 1100 mm - compleet
Mecalux frame type 122 complete 10,000 x 1100 mm
Complete Mecalux pallet racking frame (new) for quick replacement or expansion of warehouse racking. Includes 2 uprights 122 mm, bracing and fixing materials for stable assembly.
Specifications
- Brand/type: Mecalux 122
- Dimension: 10,000 x 1100 mm
- Uprights: 2x 122 mm wide
- Includes: base plates, horizontal/diagonal bracing, fixing materials
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €694.14 | |
| 10 | 17% | €640.15 | |
| 20 | 25% | €578.45 | |
| 40 | 30% | €539.89 |
Mecalux Frame 122 - 10.500 x 1100 mm - compleet
Previous
Complete pallet racking frame for stable and quick assembly
This new complete frame is the load-bearing side section of your pallet racking and forms the base to which beams are safely connected. This is a Mecalux Type 122 frame with an upright height of 10,000 mm and a depth of 1100 mm, built up with two uprights 122 mm wide. Because it is supplied as a complete set with bracing, base plates and fixing materials, you create a solid and consistent structure without having to assemble loose components.
Application in the warehouse
In a warehouse environment, the quality of the frame determines the stability, alignment and load transfer to the floor. This frame is suitable for racking where height and a straight aisle layout are important, and where a reliable base is needed for the safe storage of palletised goods.
Practical for replacement or expansion
For B2B users, this frame is ideal for expanding an existing Type 122 setup or for a one-to-one replacement of a damaged side frame. With the complete delivery, you speed up assembly and keep the structure uniform within your racking configuration.
Possible beam configurations and pallet heights
For a frame height of 10000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2500 | 2350 | 2250 |
| 1st beam | 5000 | 2350 | 2250 |
| 2nd beam | 7450 | 2300 | 2200 |
| 3rd beam | 9900 | 2300 | 2200 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 4000 | 1850 | 1750 |
| 2nd beam | 6000 | 1850 | 1750 |
| 3rd beam | 7950 | 1800 | 1700 |
| 4th beam | 9900 | 1800 | 1700 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1650 | 1500 | 1400 |
| 1st beam | 3300 | 1500 | 1400 |
| 2nd beam | 4950 | 1500 | 1400 |
| 3rd beam | 6600 | 1500 | 1400 |
| 4th beam | 8250 | 1500 | 1400 |
| 5th beam | 9900 | 1500 | 1400 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1450 | 1300 | 1200 |
| 1st beam | 2900 | 1300 | 1200 |
| 2nd beam | 4300 | 1250 | 1150 |
| 3rd beam | 5700 | 1250 | 1150 |
| 4th beam | 7100 | 1250 | 1150 |
| 5th beam | 8500 | 1250 | 1150 |
| 6th beam | 9900 | 1250 | 1150 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1250 | 1100 | 1000 |
| 1st beam | 2500 | 1100 | 1000 |
| 2nd beam | 3750 | 1100 | 1000 |
| 3rd beam | 5000 | 1100 | 1000 |
| 4th beam | 6250 | 1100 | 1000 |
| 5th beam | 7500 | 1100 | 1000 |
| 6th beam | 8700 | 1050 | 950 |
| 7th beam | 9900 | 1050 | 950 |
| SKU | Mec-F122-10000x1100 |
|---|---|
| Weight | 143.900000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106596 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 10000 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
