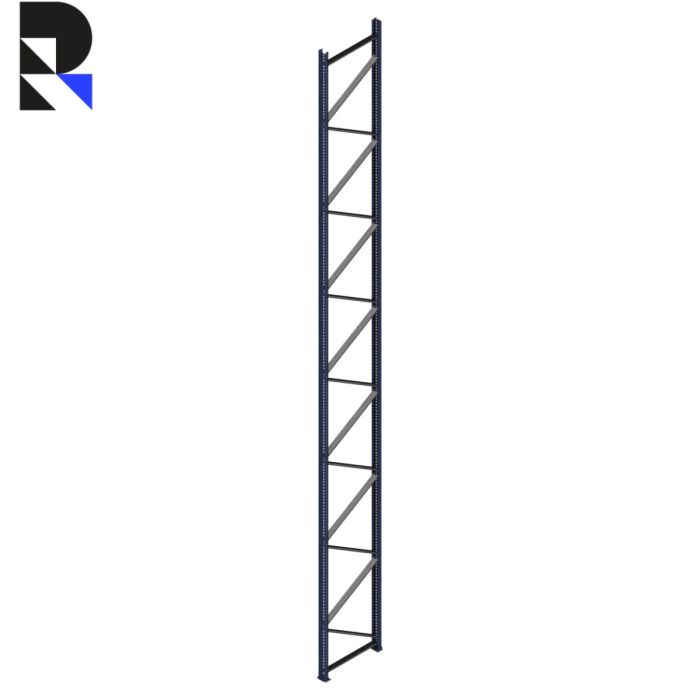

Mecalux Frame 122 - 10.500 x 1100 mm - compleet
Mecalux complete frame type 122 10,500x1100 mm
Complete Mecalux frame for pallet racking, ideal as a replacement or extension. New frame with 2 uprights type 122 (122 mm), incl. base plates, bracing and mounting hardware.
Specifications
- Brand: Mecalux
- Type: 122 (122 mm)
- Dimensions: 10,500 x 1100 mm
- Contents: 2 uprights, base plates, horizontal/diagonal bracing, mounting hardware
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €692.05 | |
| 10 | 17% | €638.22 | |
| 20 | 25% | €576.71 | |
| 40 | 30% | €538.26 |
Mecalux Single Upright Type 122 - 10500 mm
Previous
Complete frame as a sturdy base for your pallet racking setup
This complete Mecalux frame from type 122 forms the load-bearing side of a pallet racking run and is intended for a stable, safe build-up of your warehouse racking. The frame is supplied with two uprights (122 mm wide) with an upright height of 10,500 mm, including base plates, horizontal and diagonal bracing and the corresponding mounting hardware. This gives you one coherent set for assembly or replacement.
Application in the warehouse
A frame carries the beams and determines the height and stability of the racking bay. This Mecalux frame is suitable when you want to repair an existing row after damage, or when you are extending a setup with additional bays and need a reliable upright construction that can be assembled directly with the correct bracing and base plates.
Practical for replacement or extension
For B2B buyers and installers, the advantage is that you don't need to combine separate components: uprights, bracing and mounting hardware are already matched to each other. This saves time on the work floor, prevents mismatches during assembly and helps keep your racking materials efficiently deployable within a Mecalux type 122 system.
Possible beam configurations and pallet heights
For a frame height of 10500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2600 | 2450 | 2350 |
| 1st beam | 5200 | 2450 | 2350 |
| 2nd beam | 7800 | 2450 | 2350 |
| 3rd beam | 10400 | 2450 | 2350 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2100 | 1950 | 1850 |
| 1st beam | 4200 | 1950 | 1850 |
| 2nd beam | 6300 | 1950 | 1850 |
| 3rd beam | 8350 | 1900 | 1800 |
| 4th beam | 10400 | 1900 | 1800 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1750 | 1600 | 1500 |
| 1st beam | 3500 | 1600 | 1500 |
| 2nd beam | 5250 | 1600 | 1500 |
| 3rd beam | 7000 | 1600 | 1500 |
| 4th beam | 8700 | 1550 | 1450 |
| 5th beam | 10400 | 1550 | 1450 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 6000 | 1350 | 1250 |
| 4th beam | 7500 | 1350 | 1250 |
| 5th beam | 8950 | 1300 | 1200 |
| 6th beam | 10400 | 1300 | 1200 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5200 | 1150 | 1050 |
| 4th beam | 6500 | 1150 | 1050 |
| 5th beam | 7800 | 1150 | 1050 |
| 6th beam | 9100 | 1150 | 1050 |
| 7th beam | 10400 | 1150 | 1050 |
| SKU | Mec-F122-10500x1100 |
|---|---|
| Weight | 151.600000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106601 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 10500 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
