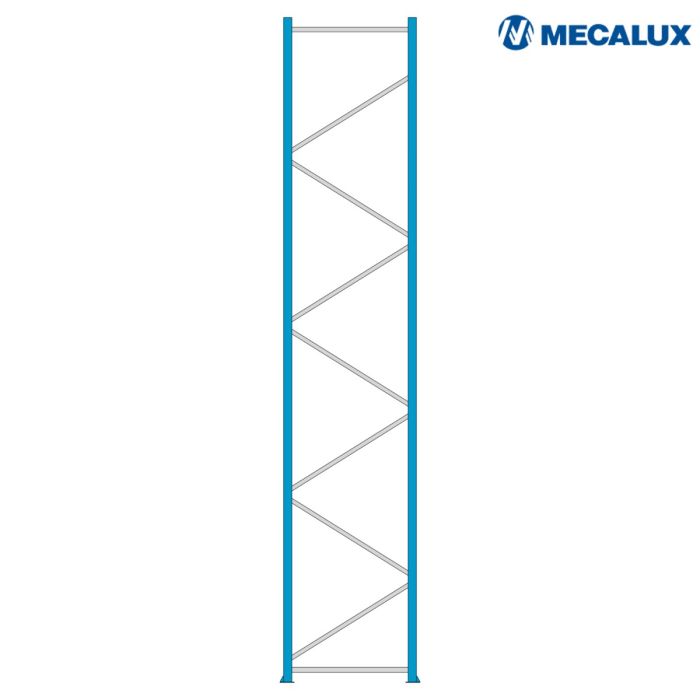

Mecalux Frame 122 - 5500 x 1100 mm - compleet
Mecalux frame Type 122 complete 5500x1100
Used complete Mecalux frame Type 122 for pallet racking, ideal as a replacement or extension. With 2 uprights 122 mm wide, 5500 mm high and 1100 mm deep.
Specifications
- Brand: Mecalux
- Type: 122, complete frame
- Size: 5500 x 1100 mm
- 2 uprights (122 mm wide)
- Base plates, horizontal/diagonal bracing + mounting hardware
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €389.06 | |
| 10 | 17% | €358.80 | |
| 20 | 25% | €324.22 | |
| 40 | 30% | €302.60 |
Mecalux Frame 122 - 6000 x 1100 mm - compleet
Previous
Complete pallet racking component for stable side support and quick assembly
This used complete frame from Mecalux (type 122) forms the load-bearing side structure of a pallet racking system and provides reliable, vertical support for the beams. With a height of 5500 mm and a depth of 1100 mm, it is suitable for taller setups where stability and dimensional accuracy are essential. The two uprights with a 122 mm profile width are supplied as a complete set with bracing, base plates and mounting hardware.
Application in the warehouse
In daily warehouse operations, the frame absorbs forces from loading, forklift movements and internal logistics. The combination of horizontal and diagonal bracing keeps the racking bay rigid and torsion-resistant, while the base plates contribute to a solid anchoring on the floor for safe construction of your racking row.
Practical for replacement or extension
For B2B buyers, this is an efficient choice for damage repair or extending an existing Mecalux setup: you don't need to gather separate parts and can proceed with assembly more quickly. Ideal when downtime needs to be limited and you want to adjust your racking layout in a targeted way.
Possible beam configurations and pallet heights
For a frame height of 5500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2700 | 2550 | 2450 |
| 1st beam | 5400 | 2550 | 2450 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3600 | 1650 | 1550 |
| 2nd beam | 5400 | 1650 | 1550 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2700 | 1200 | 1100 |
| 2nd beam | 4050 | 1200 | 1100 |
| 3rd beam | 5400 | 1200 | 1100 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1100 | 950 | 850 |
| 1st beam | 2200 | 950 | 850 |
| 2nd beam | 3300 | 950 | 850 |
| 3rd beam | 4350 | 900 | 800 |
| 4th beam | 5400 | 900 | 800 |
| SKU | Mec-F122-5500x1100 |
|---|---|
| Weight | 81.800000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106556 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 5500 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
