Mecalux Frame 122 - 7500 x 1100 mm - compleet
Mecalux frame type 122 complete 7500 x 1100 mm

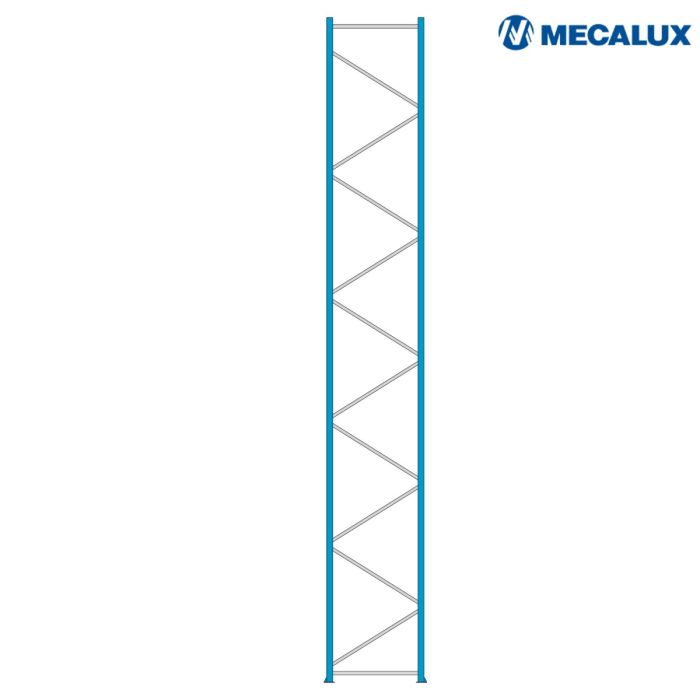

New complete Mecalux pallet racking frame for replacement/expansion of warehouse racking. Includes 2 uprights type 122 (122 mm), bracing and base plates for stable bay construction.
Specifications
- Brand: Mecalux
- Type: 122 complete frame
- Dimensions: 7500 x 1100 mm
- 2 uprights 122 mm wide
- Base plates, horizontal/diagonal bracing
- Incl. mounting materials
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €530.25 | |
| 10 | 17% | €489.01 | |
| 20 | 25% | €441.88 | |
| 40 | 30% | €412.42 |
Mecalux Frame 122 - 8000 x 1100 mm - compleet
Previous
Complete pallet racking frame for stable and quick bay construction
This new Mecalux frame from Type 122 forms the load-bearing side of your pallet racking and is intended for reliable construction or repair of a warehouse layout. With a height of 7500 mm and a depth of 1100 mm, it creates a solid base on which beams can be safely mounted, so that palletised goods remain organised and can be stored with sufficient load capacity.
Application in the warehouse
A frame determines the stability of the entire racking row. This complete frame is used for new installations, damage repair or replacing an upright construction. The 122 mm wide uprights, combined with horizontal and diagonal bracing and base plates, contribute to a tight, stable bay layout in intensively used storage areas.
Practical for replacement or expansion
For technical service and project fit-outs, this pallet racking component is efficient because it is supplied as a complete set, including mounting materials. This shortens assembly time, limits downtime and makes it easier to consistently expand or repair your Mecalux Type 122 setup.
Possible beam configurations and pallet heights
For a frame height of 7500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2500 | 2350 | 2250 |
| 1st beam | 4950 | 2300 | 2200 |
| 2nd beam | 7400 | 2300 | 2200 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1850 | 1700 | 1600 |
| 1st beam | 3700 | 1700 | 1600 |
| 2nd beam | 5550 | 1700 | 1600 |
| 3rd beam | 7400 | 1700 | 1600 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 5950 | 1300 | 1200 |
| 4th beam | 7400 | 1300 | 1200 |
| SKU | Mec-F122-7500x1100 |
|---|---|
| Weight | 110.100000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100106574 |
| Product Group | Complete Frames |
| Frame Type | 122 |
| Condition | New |
| Length (mm) | 7500 |
| Width (mm) | 122 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
