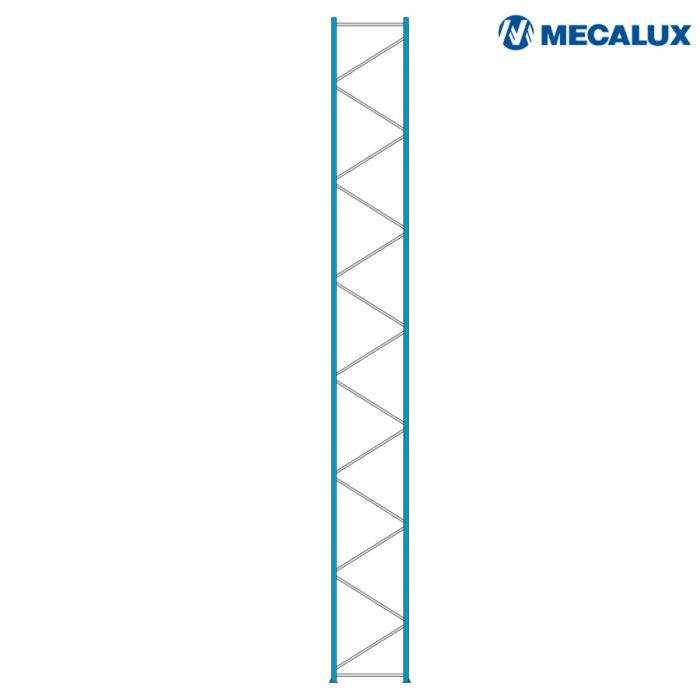

Mecalux Frame 101 - 9500 x 1100 mm - compleet
Mecalux Type 101 complete frame 9500x1100 mm (used)
Used Mecalux frame for pallet racking: complete Type 101 (101 mm) with 9500 mm uprights, ideal for replacement or expansion.
Specifications
- Brand: Mecalux
- Type: 101 (101 mm)
- Size: 9500 x 1100 mm
- Contents: 2 uprights, base plates, horizontal & diagonal bracing, mounting hardware
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €534.07 | |
| 10 | 17% | €492.53 | |
| 20 | 25% | €445.06 | |
| 40 | 30% | €415.39 |
Mecalux Frame 101 - 10.000 x 1100 mm - compleet
Previous
Complete frame as a sturdy pallet racking component for high storage configurations
This Mecalux complete frame is a load-bearing basic component for a pallet racking system and, together with beams, forms the upright section of your racking bay. You will receive a fully assembled frame with two uprights of type 101 (101 mm wide) and a height of 9500 mm, including base plates, horizontal and diagonal bracing, and the associated mounting hardware. Ideal when you need a stable construction for a higher storage configuration.
Application in the warehouse
In the warehouse, the quality of the frame determines the stability and alignment of the entire racking row. This frame is placed as the side section of the pallet racking, transfers the load via the uprights to the floor, and the bracing provides rigidity against lateral forces.
Practical for replacement or expansion
Useful for B2B maintenance and projects: replace a damaged upright section or expand an existing Mecalux Type 101 configuration without having to gather loose parts. Thanks to the complete delivery, you can assemble faster and reduce downtime in your storage process.
Possible beam configurations and pallet heights
For a frame height of 9500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2350 | 2200 | 2100 |
| 1st beam | 4700 | 2200 | 2100 |
| 2nd beam | 7050 | 2200 | 2100 |
| 3rd beam | 9400 | 2200 | 2100 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1900 | 1750 | 1650 |
| 1st beam | 3800 | 1750 | 1650 |
| 2nd beam | 5700 | 1750 | 1650 |
| 3rd beam | 7550 | 1700 | 1600 |
| 4th beam | 9400 | 1700 | 1600 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4750 | 1400 | 1300 |
| 3rd beam | 6300 | 1400 | 1300 |
| 4th beam | 7850 | 1400 | 1300 |
| 5th beam | 9400 | 1400 | 1300 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2700 | 1200 | 1100 |
| 2nd beam | 4050 | 1200 | 1100 |
| 3rd beam | 5400 | 1200 | 1100 |
| 4th beam | 6750 | 1200 | 1100 |
| 5th beam | 8100 | 1200 | 1100 |
| 6th beam | 9400 | 1150 | 1050 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1200 | 1050 | 950 |
| 1st beam | 2400 | 1050 | 950 |
| 2nd beam | 3600 | 1050 | 950 |
| 3rd beam | 4800 | 1050 | 950 |
| 4th beam | 5950 | 1000 | 900 |
| 5th beam | 7100 | 1000 | 900 |
| 6th beam | 8250 | 1000 | 900 |
| 7th beam | 9400 | 1000 | 900 |
| SKU | Mec-F101-9500x1100 |
|---|---|
| Weight | 107.700000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112796 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 9500 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
