Mecalux Frame 101 - 8000 x 1100 mm - compleet

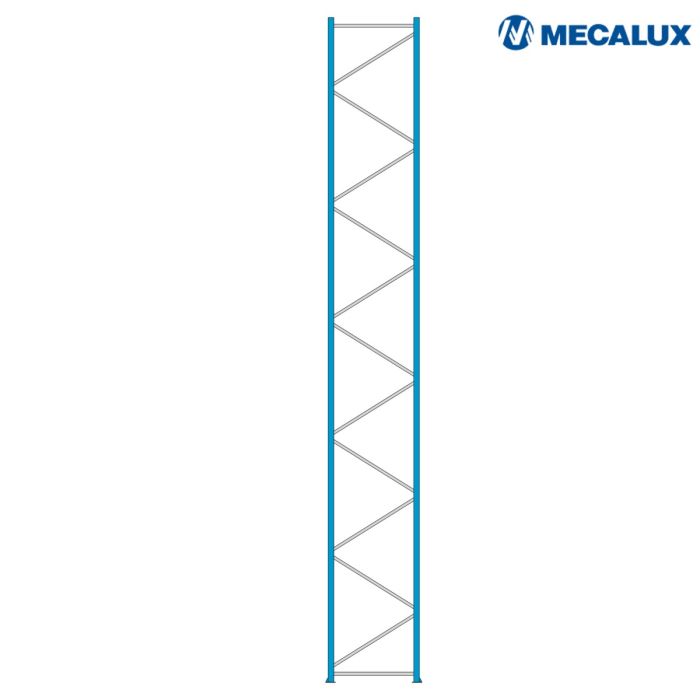

Complete Mecalux frame type 101 (new)
New complete Mecalux frame 101 for pallet racking: ideal for replacement or expansion of warehouse racking, with uprights 8000 mm and depth 1100 mm.
Specifications Mecalux Frame 101 8000x1100
- Brand/type: Mecalux 101 (101 mm)
- Size: 8000 x 1100 mm
- Contents: 2 uprights, base plates
- Bracing: horizontal + diagonal
- Incl. fixing materials
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €452.13 | |
| 10 | 17% | €416.97 | |
| 20 | 25% | €376.78 | |
| 40 | 30% | €351.66 |
Mecalux Frame 101 - 9000 x 1100 mm - compleet
Previous
Complete pallet racking component for a stable and safe racking row
This new, complete frame forms the load-bearing side of a pallet racking and is intended as a solid base for a neat setup. This concerns a Mecalux Type 101 frame with a height of 8000 mm and a depth of 1100 mm, supplied as a complete assembly with two uprights, base plates, horizontal and diagonal bracing, and the required fixing materials. This immediately creates a sturdy foundation on which beams and further racking materials can be reliably mounted.
Application in the warehouse
Frames determine the alignment and stability of your racking row and are crucial for new installations, reconfigurations, or repair after damage. The combination of bracing and base plates ensures that the load is controlled and transferred to the floor, helping to keep the structure stable under daily internal transport and intensive use.
Practical for replacement or expansion
For B2B buyers, this complete Mecalux frame is an efficient choice when you want to quickly add a bay or replace an existing section without gathering separate components. The complete package and included assembly materials reduce installation time and minimize downtime in the warehouse.
Possible beam configurations and pallet heights
For a frame height of 8000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2650 | 2500 | 2400 |
| 1st beam | 5300 | 2500 | 2400 |
| 2nd beam | 7900 | 2450 | 2350 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 4000 | 1850 | 1750 |
| 2nd beam | 5950 | 1800 | 1700 |
| 3rd beam | 7900 | 1800 | 1700 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4800 | 1450 | 1350 |
| 3rd beam | 6350 | 1400 | 1300 |
| 4th beam | 7900 | 1400 | 1300 |
| SKU | Mec-F101-8000x1100 |
|---|---|
| Weight | 91.400000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112793 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 8000 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
