Mecalux Frame 101 - 7000 x 1100 mm - compleet

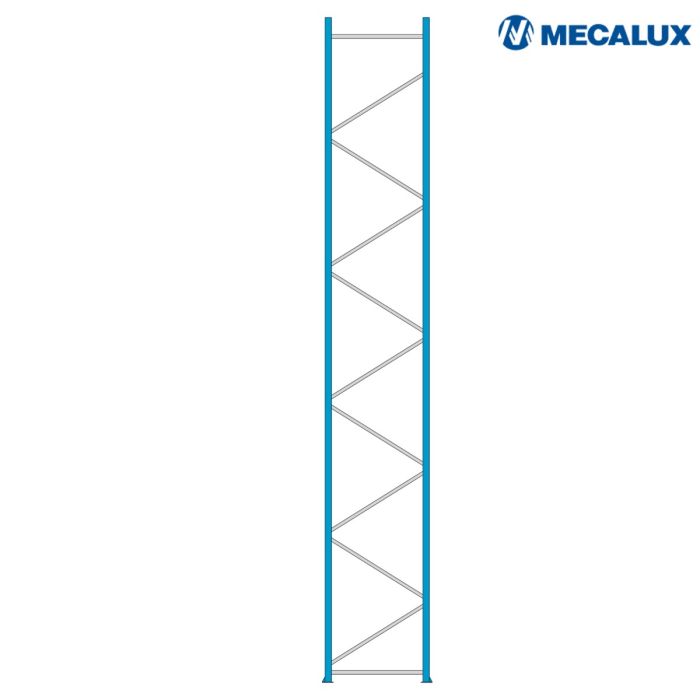

Complete Mecalux Type 101 frame 7000x1100 mm
New Mecalux frame Type 101 for pallet racking: complete with 2 uprights (101 mm), bracing, base plates and mounting materials for quick replacement or expansion.
Specifications
- Brand: Mecalux
- Type: 101
- Dimensions: 7000 x 1100 mm
- 2 uprights 101 mm wide
- Includes bracing, base plates & mounting materials
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €386.05 | |
| 10 | 17% | €356.02 | |
| 20 | 25% | €321.71 | |
| 40 | 30% | €300.26 |
Mecalux Frame 101 - 7500 x 1100 mm - compleet
Previous
Complete pallet racking component for a stable and tall racking build
This complete Mecalux frame from type 101 forms the load-bearing side of a pallet racking system and is intended for a reliable build-up of your racking row. The frame is supplied as an assembly with two uprights 101 mm wide and an upright height of 7000 mm, including base plates, horizontal and diagonal bracing and the corresponding mounting materials. With a depth of 1100 mm, it is suitable for common pallet racking systems where stability and dimensional accuracy are essential.
Application in the warehouse
A frame determines the height, alignment and load-bearing structure of the racking bay. In combination with beams, it forms a safe base for pallet storage, particularly in environments where intensive loading takes place and where a straight, uniform racking appearance is important for forklift traffic and efficient order picking.
Practical for replacement or expansion
Useful when replacing a damaged frame or expanding an existing Mecalux type 101 setup: you receive a complete frame package, allowing for faster assembly and reduced warehouse downtime.
Possible beam configurations and pallet heights
For a frame height of 7000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2300 | 2150 | 2050 |
| 1st beam | 4600 | 2150 | 2050 |
| 2nd beam | 6900 | 2150 | 2050 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1750 | 1600 | 1500 |
| 1st beam | 3500 | 1600 | 1500 |
| 2nd beam | 5200 | 1550 | 1450 |
| 3rd beam | 6900 | 1550 | 1450 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1400 | 1250 | 1150 |
| 1st beam | 2800 | 1250 | 1150 |
| 2nd beam | 4200 | 1250 | 1150 |
| 3rd beam | 5550 | 1200 | 1100 |
| 4th beam | 6900 | 1200 | 1100 |
| SKU | Mec-F101-7000x1100 |
|---|---|
| Weight | 79.800000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112791 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 7000 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
