Mecalux Frame 101 - 7500 x 1100 mm - compleet

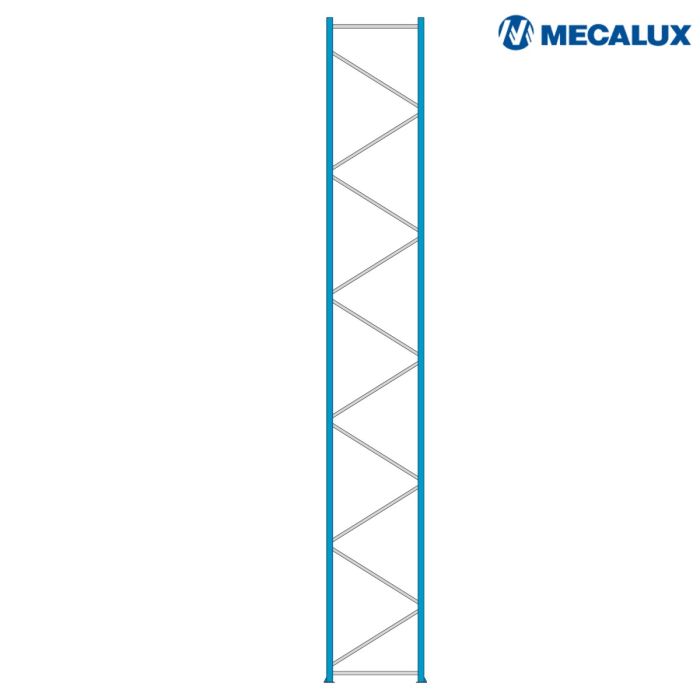

Complete Mecalux frame Type 101 7500 x 1100 mm
New complete Mecalux frame Type 101 for pallet racking: 2 uprights (101 mm), bracing, base plates and mounting hardware. Ideal as a replacement or extension for warehouse racking.
Specifications
- Brand: Mecalux
- Type: 101 (101 mm)
- Size: 7500 x 1100 mm
- Contents: 2 uprights, base plates, horizontal & diagonal bracing
- Incl. mounting hardware
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €420.93 | |
| 10 | 17% | €388.19 | |
| 20 | 25% | €350.78 | |
| 40 | 30% | €327.39 |
Mecalux Frame 101 - 8000 x 1100 mm - compleet
Previous
Complete frame as a stable pallet racking component for tall, reliable racking rows
This new complete Mecalux Type 101 frame forms the load-bearing base of your pallet racking and is designed for professional warehouse setups where stability and continuity are essential. With a height of 7500 mm and a depth of 1100 mm, the frame provides a solid foundation for safely building up racking bays. The 101 mm uprights are supplied as a coherent set with bracing, base plates and mounting hardware, so you can assemble a complete set right away.
Application in the warehouse
Frames function as uprights to which beams connect, thereby determining the height, alignment and rigidity of the racking row. This frame is suitable when you are building up or repairing a Mecalux Type 101 setup and need a complete frame that is structurally sound and quick to install.
Practical for replacement or extension
For B2B purchasing, a complete frame is ideal for damage repair or expansion: you receive the essential components directly in one package, keeping assembly time short and limiting unplanned downtime in the warehouse.
Possible beam configurations and pallet heights
For a frame height of 7500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2500 | 2350 | 2250 |
| 1st beam | 4950 | 2300 | 2200 |
| 2nd beam | 7400 | 2300 | 2200 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1850 | 1700 | 1600 |
| 1st beam | 3700 | 1700 | 1600 |
| 2nd beam | 5550 | 1700 | 1600 |
| 3rd beam | 7400 | 1700 | 1600 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 5950 | 1300 | 1200 |
| 4th beam | 7400 | 1300 | 1200 |
| SKU | Mec-F101-7500x1100 |
|---|---|
| Weight | 85.800000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112792 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 7500 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
