Mecalux Frame 101 - 6000 x 1100 mm - compleet

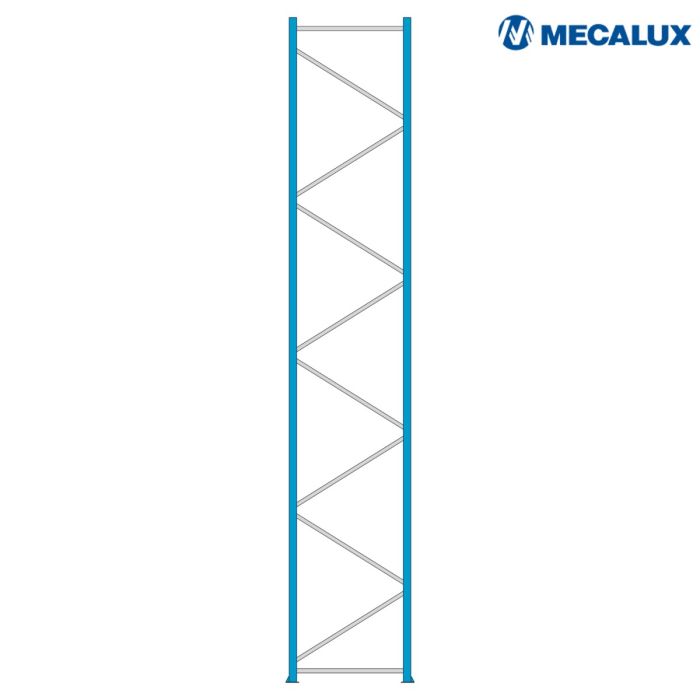

Mecalux frame Type 101 complete 6000x1100
New complete Mecalux frame (Type 101) for pallet racking, ideal as a replacement or extension. Includes 2 uprights 101 mm wide and bracing for a stable warehouse setup.
Specifications
- Brand: Mecalux
- Type: 101
- Dimensions: 6000x1100 mm
- 2 uprights (101 mm wide)
- Base plates, horizontal & diagonal bracing
- Includes mounting hardware
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €335.29 | |
| 10 | 17% | €309.21 | |
| 20 | 25% | €279.41 | |
| 40 | 30% | €260.78 |
Mecalux Frame 101 - 6500 x 1100 mm - compleet
Previous
Complete frame as a stable base for your pallet racking
This complete Mecalux frame (Type 101) forms the load-bearing side of your pallet racking and is intended for a reliable setup or replacement in the warehouse. The frame is supplied as a complete set with two uprights 101 mm wide and an upright length of 6000 mm, including base plates, horizontal and diagonal bracing and the corresponding mounting hardware.
Application in the warehouse
Frames provide the stability and alignment of the racking bay and transfer the load via the base plates to the floor. This frame is suitable for situations where a tall upright is needed and where a solid construction is important for safe storage and working between the aisles.
Practical for replacement or extension
For B2B buyers who want to act quickly in case of damage, reorganisation or expansion, a complete frame offers convenience: all essential components are included together, making assembly and replacement efficient. With the well-known Mecalux Type 101 design, you choose a common racking material that fits professional warehouse setups.
Possible beam configurations and pallet heights
For a frame height of 6000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 3950 | 1800 | 1700 |
| 2nd beam | 5900 | 1800 | 1700 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4450 | 1300 | 1200 |
| 3rd beam | 5900 | 1300 | 1200 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1200 | 1050 | 950 |
| 1st beam | 2400 | 1050 | 950 |
| 2nd beam | 3600 | 1050 | 950 |
| 3rd beam | 4750 | 1000 | 900 |
| 4th beam | 5900 | 1000 | 900 |
| SKU | Mec-F101-6000x1100 |
|---|---|
| Weight | 69.700000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112789 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 6000 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
