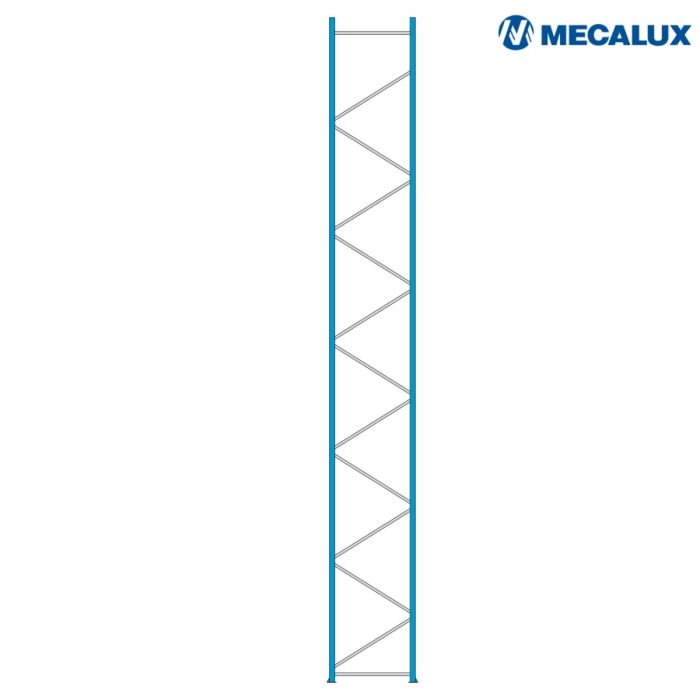

Mecalux Frame 101 - 9000 x 1100 mm - compleet
Mecalux frame Type 101 complete 9000x1100
New complete Mecalux frame Type 101 (9000x1100 mm) for pallet racking; ideal as a replacement or extension incl. uprights, bracing and base plates.
Specifications
- Brand: Mecalux
- Type: 101 (101 mm wide)
- Dimension: 9000 x 1100 mm
- Condition: new
- Includes: 2 uprights, base plates, horizontal/diagonal bracing, mounting hardware
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €484.83 | |
| 10 | 17% | €447.12 | |
| 20 | 25% | €404.03 | |
| 40 | 30% | €377.09 |
Mecalux Frame 101 - 9500 x 1100 mm - compleet
Previous
Complete frame as a sturdy base component for a reliable pallet racking build
This complete Mecalux frame (type 101) forms the load-bearing side section of a pallet racking system and is intended for a stable, safe assembly of your warehouse racking. The frame consists of two uprights with a profile width of 101 mm and an upright height of 9000 mm, allowing you to achieve a tall racking configuration onto which beams and levels connect.
Application in the warehouse
Frames determine the load-bearing structure and dimensions of the racking system. Thanks to the included base plates, horizontal and diagonal bracing, a rigid construction is created that neatly transfers forces to the floor. This makes the frame suitable for building up new rows or repairing damaged racking sections in a professional storage environment.
Practical for replacement or extension
For B2B buyers, a complete frame is especially efficient: you receive the frame including the associated mounting hardware, which simplifies assembly and planning. Ideal for extending a Mecalux type 101 installation or when you quickly need a complete, correct frame side again.
Possible beam configurations and pallet heights
For a frame height of 9000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2250 | 2100 | 2000 |
| 1st beam | 4500 | 2100 | 2000 |
| 2nd beam | 6700 | 2050 | 1950 |
| 3rd beam | 8900 | 2050 | 1950 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3600 | 1650 | 1550 |
| 2nd beam | 5400 | 1650 | 1550 |
| 3rd beam | 7150 | 1600 | 1500 |
| 4th beam | 8900 | 1600 | 1500 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 6000 | 1350 | 1250 |
| 4th beam | 7450 | 1300 | 1200 |
| 5th beam | 8900 | 1300 | 1200 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5150 | 1100 | 1000 |
| 4th beam | 6400 | 1100 | 1000 |
| 5th beam | 7650 | 1100 | 1000 |
| 6th beam | 8900 | 1100 | 1000 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1150 | 1000 | 900 |
| 1st beam | 2300 | 1000 | 900 |
| 2nd beam | 3400 | 950 | 850 |
| 3rd beam | 4500 | 950 | 850 |
| 4th beam | 5600 | 950 | 850 |
| 5th beam | 6700 | 950 | 850 |
| 6th beam | 7800 | 950 | 850 |
| 7th beam | 8900 | 950 | 850 |
| SKU | Mec-F101-9000x1100 |
|---|---|
| Weight | 101.800000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112795 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 9000 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
