Mecalux Frame 101 - 6500 x 1100 mm - compleet

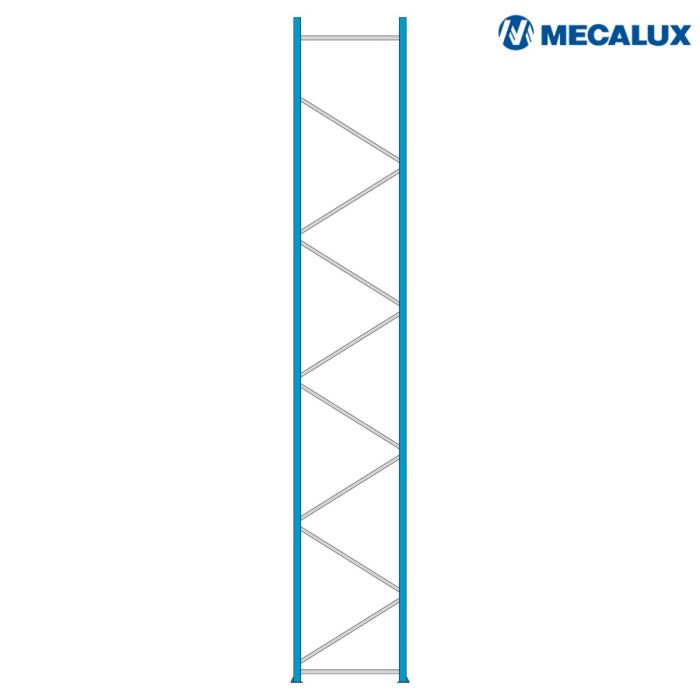

Complete Mecalux Type 101 frame 6500x1100 mm
Complete Mecalux frame (Type 101) for pallet racking, ideal for replacement or expansion. New, including uprights, bracing, base plates and mounting hardware.
Specifications Mecalux frame
- New complete frame
- 2 uprights Type 101 (101 mm)
- 6500 x 1100 mm
- Base plates, horizontal/diagonal bracing
- Incl. mounting hardware
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 5 | 10% | €362.71 | |
| 10 | 17% | €334.50 | |
| 20 | 25% | €302.26 | |
| 40 | 30% | €282.11 |
Mecalux Frame 101 - 7000 x 1100 mm - compleet
Previous
Complete frame as a reliable pallet racking component for a stable row structure
This new complete Mecalux frame Type 101 is the load-bearing side structure of your pallet racking on which beams are mounted. With a height of 6500 mm and a depth of 1100 mm, it provides a solid basis for a straight and safe racking setup. You receive a complete set with two 101 mm uprights, bracing, base plates and matching mounting hardware, so you can continue building right away without having to combine separate parts.
Application in the warehouse
The frame determines the bay height and contributes significantly to the stability of the entire racking row. Horizontal and diagonal bracing provides stiffening, while the base plates transfer the load to the floor in a controlled manner. Practical for warehouses with intensive pallet traffic where alignment, safety and consistent construction are essential.
Practical for replacement or expansion
Suitable when you want to replace a damaged side frame or expand an existing Mecalux Type 101 configuration. Because the frame is supplied complete, you speed up assembly and keep the setup uniform, which is convenient for maintenance, reconfiguration and future expansions.
Possible beam configurations and pallet heights
For a frame height of 6500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2150 | 2000 | 1900 |
| 1st beam | 4300 | 2000 | 1900 |
| 2nd beam | 6400 | 1950 | 1850 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4800 | 1450 | 1350 |
| 3rd beam | 6400 | 1450 | 1350 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5150 | 1100 | 1000 |
| 4th beam | 6400 | 1100 | 1000 |
| SKU | Mec-F101-6500x1100 |
|---|---|
| Weight | 73.800000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100112790 |
| Product Group | Complete Frames |
| Frame Type | 101 |
| Condition | New |
| Length (mm) | 6500 |
| Width (mm) | 101 |
| Depth (mm) | 1100 |
| Finish | Coated |
| Color | RAL 5003 |
| Delivery Time Indication | 3-5 weeks |
