Nieuw Nimar Frame PC082 - 8025 x 1100 mm - compleet
New Nimar complete frame 8025 x 1100 mm
New Nimar frame PC082 (8025 x 1100 mm) for pallet racking: ideal as a replacement upright frame when extending or repairing warehouse racking.
Specifications
- Condition: new
- Dimensions: 8025 x 1100 mm
- 2 columns (82 mm)
- 2 base plates
- Horizontal & diagonal bracing + fixing materials
Nieuw Nimar Frame PC102 - 6000 x 1100 mm - compleet
Previous
Complete frame as a stable base for your pallet racking installation

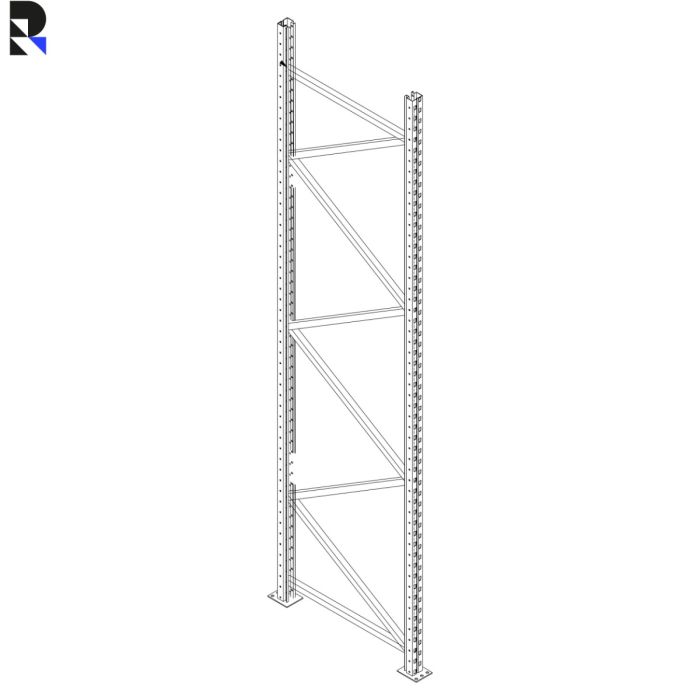

This new Nimar frame is a complete assembled frame for pallet racking and forms the load-bearing side of your racking bay. With an assembled size of approximately 8025 x 1100 mm, it provides a solid basis for a safe and tidy build-up of your warehouse racking, including the necessary components to assemble the frame in one go.
Application in the warehouse
Frames determine the height, depth and stability of the racking structure and are essential for new installations, reconfigurations or replacing damaged uprights. This frame is supplied with two columns (type 82 mm wide), base plates and both horizontal and diagonal bracing, so the structure immediately has the correct rigidity for daily logistical loads.
Practical for replacement or expansion
For technical departments and warehouse managers, a complete frame is ideal when speed and certainty matter. You order one set with the corresponding fixing materials, meaning you have fewer loose parts to source and your pallet racking is back in use more quickly during expansion or repair.
Possible beam configurations and pallet heights
For a frame height of 8025 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2650 | 2500 | 2400 |
| 1st beam | 5300 | 2500 | 2400 |
| 2nd beam | 7900 | 2450 | 2350 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 4000 | 1850 | 1750 |
| 2nd beam | 5950 | 1800 | 1700 |
| 3rd beam | 7900 | 1800 | 1700 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4800 | 1450 | 1350 |
| 3rd beam | 6350 | 1400 | 1300 |
| 4th beam | 7900 | 1400 | 1300 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2700 | 1200 | 1100 |
| 2nd beam | 4000 | 1150 | 1050 |
| 3rd beam | 5300 | 1150 | 1050 |
| 4th beam | 6600 | 1150 | 1050 |
| 5th beam | 7900 | 1150 | 1050 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1150 | 1000 | 900 |
| 1st beam | 2300 | 1000 | 900 |
| 2nd beam | 3450 | 1000 | 900 |
| 3rd beam | 4600 | 1000 | 900 |
| 4th beam | 5700 | 950 | 850 |
| 5th beam | 6800 | 950 | 850 |
| 6th beam | 7900 | 950 | 850 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1000 | 850 | 750 |
| 1st beam | 2000 | 850 | 750 |
| 2nd beam | 3000 | 850 | 750 |
| 3rd beam | 4000 | 850 | 750 |
| 4th beam | 5000 | 850 | 750 |
| 5th beam | 6000 | 850 | 750 |
| 6th beam | 6950 | 800 | 700 |
| 7th beam | 7900 | 800 | 700 |
| SKU | F82EO01071100000-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Cor Verkolf Nimar |
| Artikelnummer Fabrikant | F82EO01071100000 |
| Product Group | Complete Frames |
| Frame Type | PC082 |
| Condition | New |
| Length (mm) | 8025 |
| Width (mm) | 82 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S350GD |
| Finish | Galvanized |
| Delivery Time Indication | 4-6 weeks |
