Nieuw Nimar Frame PC082 - 3000 x 1100 mm - compleet
New Nimar pallet racking frame 3000x1100 mm
Completely new Nimar frame for pallet racking, ideal as a replacement part or extension of your warehouse racking. PC082 with 82 mm uprights, 3000x1100 mm, including bracing and mounting hardware.
Specifications
- Brand: Nimar
- Condition: new
- Assembled dimension: 3000 x 1100 mm
- 2 uprights type 82 mm
- Incl. 2 base plates, horizontal & diagonal bracing, mounting hardware
Complete frame as a stable base for your pallet racking

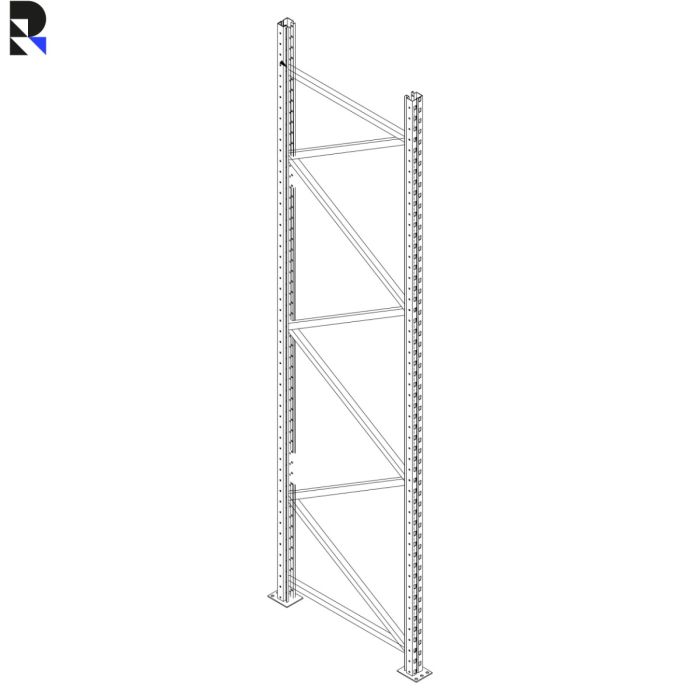

This new Nimar frame is a complete upright section for building or repairing pallet racking. With an assembled size of 3000 x 1100 mm, it forms a sturdy base on which beams can be safely mounted. The frame is supplied as a complete package, so you immediately have all the essential parts for a neat and reliable setup.
Application in the warehouse
In a warehouse environment, the quality of the frame determines the stability of the entire racking bay. This frame is built up with 2 uprights (type 82 mm wide), base plates, and both horizontal and diagonal bracing for a solid construction. Ideal for new construction, reorganization, or when a damaged frame needs to be replaced.
Practical for replacement or expansion
For technical service, installation partners, and logistics companies, this complete frame is practical because it comes with the matching mounting hardware included. You minimize downtime, work more efficiently, and keep your racking material uniform within the Nimar system, without having to gather separate parts.
Possible beam configurations and pallet heights
For a frame height of 3000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1450 | 1300 | 1200 |
| 1st beam | 2900 | 1300 | 1200 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1000 | 850 | 750 |
| 1st beam | 1950 | 800 | 700 |
| 2nd beam | 2900 | 800 | 700 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 750 | 600 | 500 |
| 1st beam | 1500 | 600 | 500 |
| 2nd beam | 2200 | 550 | 450 |
| 3rd beam | 2900 | 550 | 450 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 600 | 450 | 350 |
| 1st beam | 1200 | 450 | 350 |
| 2nd beam | 1800 | 450 | 350 |
| 3rd beam | 2350 | 400 | 300 |
| 4th beam | 2900 | 400 | 300 |
| SKU | F82EO00401100000-N |
|---|---|
| Verwachte levertijd | 5-10 werkdagen |
| Country of Manufacture | Netherlands |
| Manufacturer | Cor Verkolf Nimar |
| Artikelnummer Fabrikant | F82EO00401100000 |
| Product Group | Complete Frames |
| Frame Type | PC082 |
| Condition | New |
| Length (mm) | 3000 |
| Width (mm) | 82 |
| Depth (mm) | 1100 |
| Material | Steel - S350GD |
| Finish | Galvanized |
| Delivery Time Indication | 5-10 working days |
