Nieuw Nimar Frame PC082 - 4050 x 1100 mm - compleet
New Nimar frame 4050x1100 mm complete
Complete new Nimar pallet racking frame (PC082) for quick replacement/expansion of warehouse racking; 4050x1100 mm with 82 mm posts.
Specifications
- Brand: Nimar
- Condition: new
- Dimension: 4050x1100 mm
- 2 posts 82 mm
- Incl. 2 base plates, horizontal/diagonal bracing + mounting hardware
Nieuw Nimar Frame PC082 - 4500 x 1100 mm - compleet
Previous
Complete frame as a solid base for a safe pallet racking system

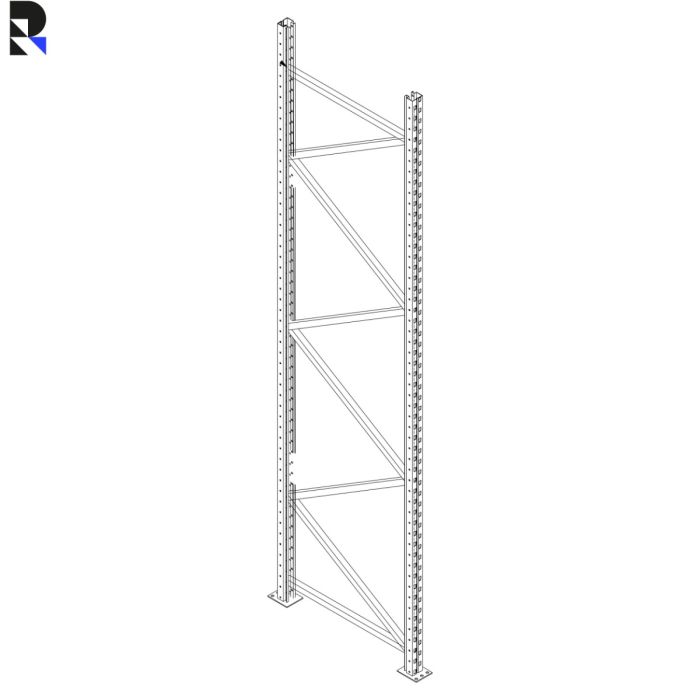

This new Nimar frame is a complete upright unit for building or repairing a pallet racking system. With an assembled size of 4050 x 1100 mm, it forms the support structure onto which beams are attached, keeping your storage neatly aligned and stable. Thanks to the included bracing and mounting hardware, the frame can be used immediately within a professional warehouse environment.
Application in the warehouse
A frame determines the height and depth of a racking bay and transfers the loads to the floor via the base plates. This model is equipped with two posts of the 82 mm wide type and is suitable when you need a complete upright side for new construction, damage repair, or reorganizing your storage.
Practical for replacement or expansion
For B2B buyers, a complete frame is efficient: you avoid loose, hard-to-find parts and assembly components, reduce downtime, and can quickly bring a racking section back up to standard. Ideal if you want to expand an existing Nimar setup with uniform parts or replace a damaged frame.
Possible beam configurations and pallet heights
For a frame height of 4050 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 3950 | 1800 | 1700 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2650 | 1150 | 1050 |
| 2nd beam | 3950 | 1150 | 1050 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1000 | 850 | 750 |
| 1st beam | 2000 | 850 | 750 |
| 2nd beam | 3000 | 850 | 750 |
| 3rd beam | 3950 | 800 | 700 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 800 | 650 | 550 |
| 1st beam | 1600 | 650 | 550 |
| 2nd beam | 2400 | 650 | 550 |
| 3rd beam | 3200 | 650 | 550 |
| 4th beam | 3950 | 600 | 500 |
| SKU | F82EO00541100000-N |
|---|---|
| Verwachte levertijd | 5-10 werkdagen |
| Country of Manufacture | Netherlands |
| Manufacturer | Cor Verkolf Nimar |
| Artikelnummer Fabrikant | F82EO00541100000 |
| Product Group | Complete Frames |
| Frame Type | PC082 |
| Condition | New |
| Length (mm) | 4050 |
| Width (mm) | 82 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S350GD |
| Finish | Galvanized |
| Delivery Time Indication | 5-10 working days |
