Nieuw Nimar Frame PC082 - 3525 x 1100 mm - compleet
New Nimar pallet racking frame 3525 x 1100 mm

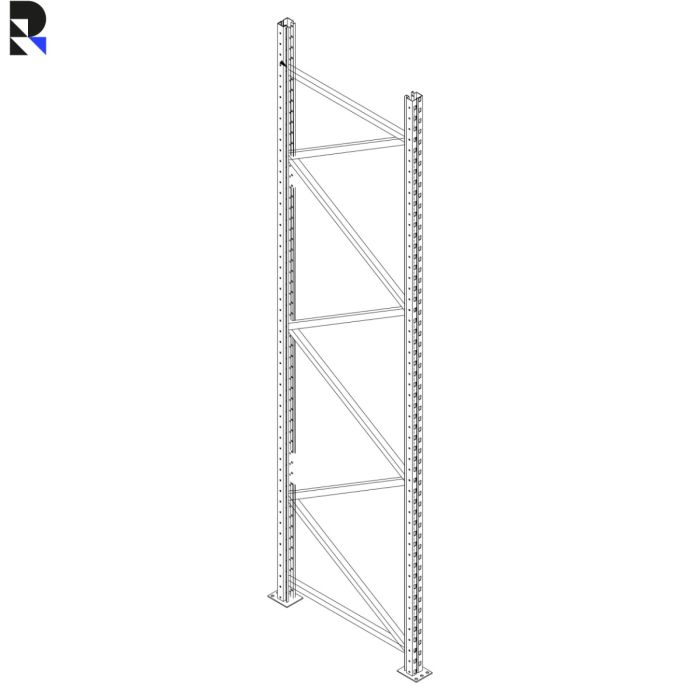

Complete new Nimar frame for pallet racking, ideal as a replacement or extension of your warehouse racking. This complete frame 3525 x 1100 mm is supplied with uprights, bracing, base plates and mounting hardware.
Specifications
- Brand: Nimar
- Condition: new
- Dimensions: 3525 x 1100 mm
- 2 uprights: type 82 mm
- Incl. 2 base plates, horizontal & diagonal bracing, mounting hardware
Nieuw Nimar Frame PC082 - 4050 x 1100 mm - compleet
Previous
Complete pallet racking frame for a stable and safe base in your storage
This new Nimar frame is a complete upright unit for pallet racking and forms the load-bearing base of your racking layout. With an assembled size of 3525 x 1100 mm, it is suitable when you are looking for a solid starting point for new installations or for restoring an existing row. The construction is built up from two uprights with a profile width of 82 mm, including base plates and the necessary mounting hardware.
Application in the warehouse
A complete frame is placed as the upright side of the pallet racking and determines the height and depth of the bay. Thanks to horizontal and diagonal bracing, the required rigidity for daily use is achieved, such as forklift handling and varying pallet loads. This makes the frame an essential pallet racking component for a reliable warehouse setup.
Practical for replacement or extension
For B2B buyers, this frame is of interest when you want to quickly set up a new section or replace a damaged frame 1-to-1 without combining loose parts. Because it concerns a complete new frame, you work efficiently with consistent quality and a neat, professional assembly of your racking materials.
Possible beam configurations and pallet heights
For a frame height of 3525 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1700 | 1550 | 1450 |
| 1st beam | 3400 | 1550 | 1450 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1150 | 1000 | 900 |
| 1st beam | 2300 | 1000 | 900 |
| 2nd beam | 3400 | 950 | 850 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 850 | 700 | 600 |
| 1st beam | 1700 | 700 | 600 |
| 2nd beam | 2550 | 700 | 600 |
| 3rd beam | 3400 | 700 | 600 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 700 | 550 | 450 |
| 1st beam | 1400 | 550 | 450 |
| 2nd beam | 2100 | 550 | 450 |
| 3rd beam | 2750 | 500 | 400 |
| 4th beam | 3400 | 500 | 400 |
| SKU | F82EO00471100000-N |
|---|---|
| Verwachte levertijd | 5-10 werkdagen |
| Country of Manufacture | Netherlands |
| Manufacturer | Cor Verkolf Nimar |
| Artikelnummer Fabrikant | F82EO00471100000 |
| Product Group | Complete Frames |
| Frame Type | PC082 |
| Condition | New |
| Length (mm) | 3525 |
| Width (mm) | 82 |
| Depth (mm) | 1100 |
| Material | Steel - S350GD |
| Finish | Galvanized |
| Delivery Time Indication | 5-10 working days |
