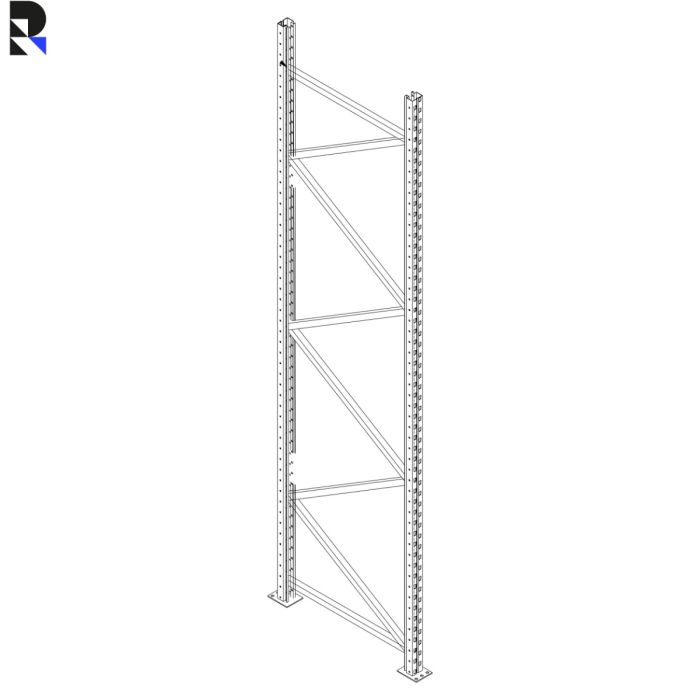

Nieuw Nimar Frame PC082 - 4500 x 1100 mm - compleet
New Nimar complete frame 4500x1100 mm
Complete Nimar pallet racking frame (new) for replacement or extension of warehouse racking; supplied with uprights, bracing and mounting parts.
Specifications
- Brand: Nimar
- Condition: new
- Size: 4500 x 1100 mm
- 2 uprights type 82 mm
- Including base plates, horizontal/diagonal bracing and fixing material
Nieuw Nimar Frame PC082 - 5100 x 1100 mm - compleet
Previous
Robust frame as basis for a stable pallet racking setup
This complete Nimar frame is a new frame for pallet racking and forms the load-bearing side structure onto which beams are mounted. With an assembled size of 4500 x 1100 mm it provides a solid basis for safe storage and a straight, uniform racking bay. The version with two uprights, 82 mm wide, is intended for professional warehouse fit-out where reliability and repeatable assembly are important.
Application in the warehouse
A frame determines the height and depth of your racking and, together with bracing and base plates, ensures stability on the floor. This frame is supplied as a complete set including horizontal and diagonal bracing and matching fixing material, so you can quickly assemble or replace a damaged frame without having to combine loose parts.
Practical for replacement or extension
For B2B buyers and installers this is an efficient choice when extending existing rows or repairing collision damage. You receive a complete, new Nimar solution that simplifies the assembly process and limits downtime in the warehouse.
Possible beam configurations and pallet heights
For a frame height of 4500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2200 | 2050 | 1950 |
| 1st beam | 4400 | 2050 | 1950 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 2950 | 1300 | 1200 |
| 2nd beam | 4400 | 1300 | 1200 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1100 | 950 | 850 |
| 1st beam | 2200 | 950 | 850 |
| 2nd beam | 3300 | 950 | 850 |
| 3rd beam | 4400 | 950 | 850 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 900 | 750 | 650 |
| 1st beam | 1800 | 750 | 650 |
| 2nd beam | 2700 | 750 | 650 |
| 3rd beam | 3550 | 700 | 600 |
| 4th beam | 4400 | 700 | 600 |
| SKU | F82EO00601100000-N |
|---|---|
| Verwachte levertijd | 5-10 werkdagen |
| Country of Manufacture | Netherlands |
| Manufacturer | Cor Verkolf Nimar |
| Artikelnummer Fabrikant | F82EO00601100000 |
| Product Group | Complete Frames |
| Frame Type | PC082 |
| Condition | New |
| Length (mm) | 4500 |
| Width (mm) | 82 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S350GD |
| Finish | Galvanized |
| Delivery Time Indication | 5-10 working days |
