Nieuw Nimar Frame PC082 - 7500 x 1100 mm - compleet
New Nimar pallet racking frame 7500x1100 mm

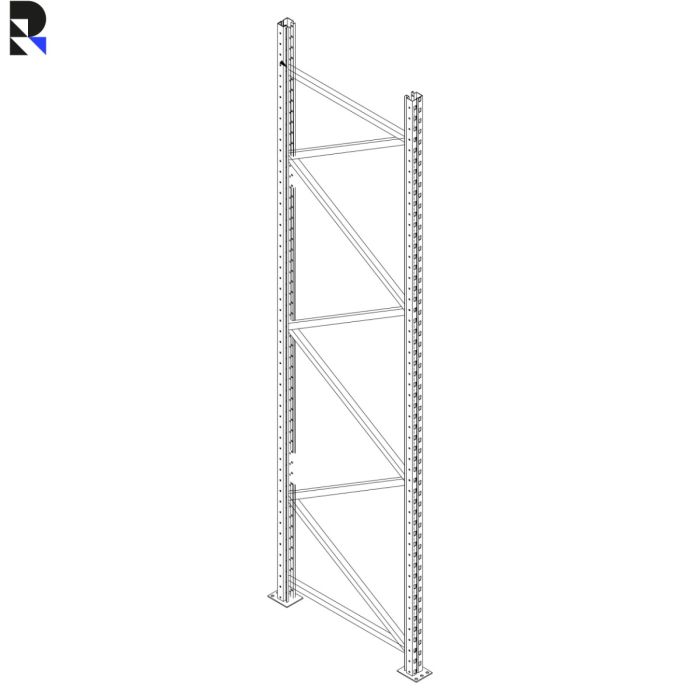

Complete new Nimar frame PC082 for pallet racking; ideal for replacing or expanding warehouse racking. Supplied with uprights, bracing, base plates and fixings.
Specifications Nimar frame PC082
- New complete frame
- 7500 x 1100 mm
- 2 uprights type 82 mm
- 2 base plates
- Horizontal + diagonal bracing
- Incl. fixing materials
Nieuw Nimar Frame PC082 - 8025 x 1100 mm - compleet
Previous
Sturdy frame as a pallet racking component for a stable upright construction
This new Nimar complete frame is intended as a base for a safe and straight assembly of your pallet racking. With an assembled size of 7500 x 1100 mm, it forms a solid upright section on which beams and levels can be reliably built up. The uprights are executed in type 82 mm, providing a solid starting point for renovating or newly building warehouse racking.
Application in the warehouse
In daily warehouse environments, the quality of the frame determines the stability of the entire racking. This frame is supplied including base plates, horizontal and diagonal bracing and the associated fixing materials, so you can quickly install a complete upright solution or replace a damaged frame on a like-for-like basis.
Practical for replacement or expansion
For B2B buyers who want to limit downtime, a completely supplied frame is practical: fewer loose parts, predictable assembly and a neat, consistent build-up in your racking row. Suitable when expanding your current setup or wanting to renew a frame with a new Nimar version.
Possible beam configurations and pallet heights
For a frame height of 7500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2500 | 2350 | 2250 |
| 1st beam | 4950 | 2300 | 2200 |
| 2nd beam | 7400 | 2300 | 2200 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1850 | 1700 | 1600 |
| 1st beam | 3700 | 1700 | 1600 |
| 2nd beam | 5550 | 1700 | 1600 |
| 3rd beam | 7400 | 1700 | 1600 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 5950 | 1300 | 1200 |
| 4th beam | 7400 | 1300 | 1200 |
| SKU | F82EO01001100000-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Cor Verkolf Nimar |
| Artikelnummer Fabrikant | F82EO01001100000 |
| Product Group | Complete Frames |
| Frame Type | PC082 |
| Condition | New |
| Length (mm) | 7500 |
| Width (mm) | 82 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S350GD |
| Finish | Galvanized |
| Delivery Time Indication | 4-6 weeks |
