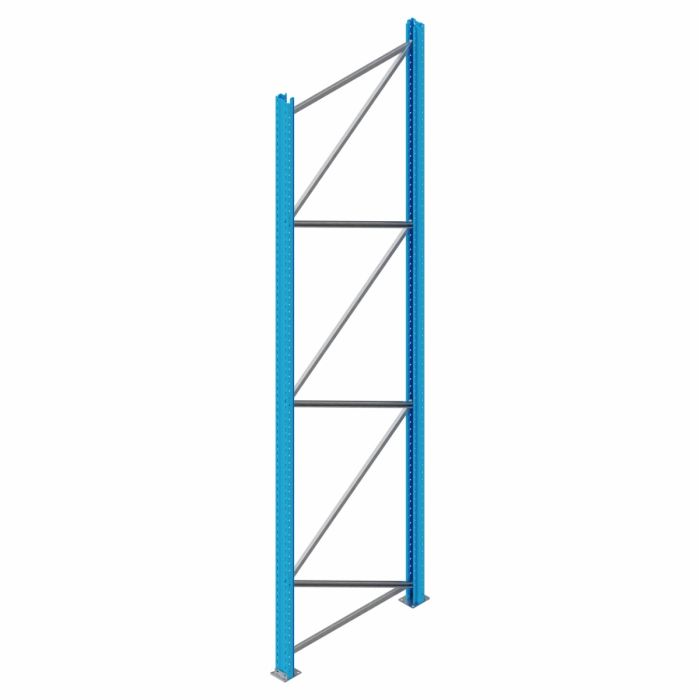

Stow Frame PLFB 32 - 4750x1100 mm - compleet
Stow complete frame PLUPA 32 for pallet racking
New Stow frame Type 32 (4750x1100 mm) as a complete upright frame for pallet racking systems, ideal for replacement or expansion of warehouse storage solutions.
Specifications Stow Frame PLFB 32
- Dimensions: 4750 x 1100 mm
- 2 uprights PLUPA 32: 120 x 92 mm
- Incl. 2 base plates, horizontal & diagonal bracing
- Incl. fastening material; delivery unassembled
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 7% | €335.62 | |
| 20 | 10% | €323.62 | |
| 40 | 12% | €317.62 |
Stow Frame PLFB 32 - 4500x1100 mm - compleet
Previous
Complete pallet racking frame for stable and safe racking system construction
This complete Stow frame provides a solid foundation for your pallet racking system and forms the load-bearing side structure onto which beams are connected. With assembled dimensions of 4750 x 1100 mm, the frame is suitable for warehouse racking where stability and reliable load transfer are paramount. This is a Type 32 version with two PLUPA 32 uprights (120 mm wide, 92 mm deep), including base plates, horizontal and diagonal bracing, and the corresponding fastening material.
Warehouse application
Frames determine the height, depth, and stability of a pallet racking system. This frame is used when constructing or reconstructing racking systems and, together with the bracing and base plates, ensures firm anchorage to the floor and a stable structure in aisles and storage areas. Delivery is standard unassembled, unless otherwise ordered.
Practical for replacement or expansion
For B2B environments where continuity matters, a complete frame is ideal for damage repair or expansion with additional bays. You receive all essential frame components in one set, making assembly and planning more efficient so you can quickly resume safe storage operations.
Possible beam configurations and pallet heights
For a frame height of 4750 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2350 | 2200 | 2100 |
| 1st beam | 4650 | 2150 | 2050 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1550 | 1400 | 1300 |
| 1st beam | 3100 | 1400 | 1300 |
| 2nd beam | 4650 | 1400 | 1300 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1200 | 1050 | 950 |
| 1st beam | 2350 | 1000 | 900 |
| 2nd beam | 3500 | 1000 | 900 |
| 3rd beam | 4650 | 1000 | 900 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 950 | 800 | 700 |
| 1st beam | 1900 | 800 | 700 |
| 2nd beam | 2850 | 800 | 700 |
| 3rd beam | 3750 | 750 | 650 |
| 4th beam | 4650 | 750 | 650 |
| SKU | PLFB 32-475-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 32-475-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 32 |
| Condition | New |
| Length (mm) | 4750 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 3.5 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
