Stow Frame PLFB 32 - 6500x1100 mm - compleet

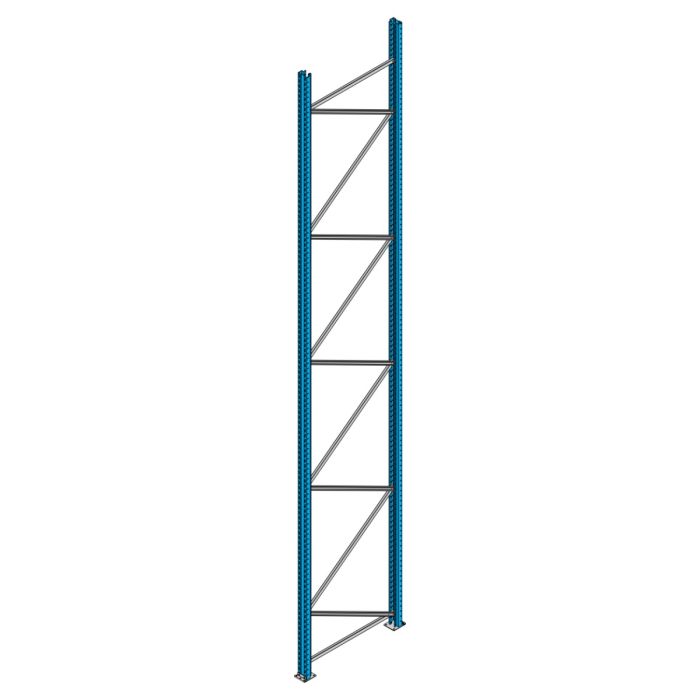

Complete Stow pallet racking frame Type 32 6500x1100 mm
Complete Stow frame PLFB 32 (new) for pallet racking, ideal for replacement or expansion of warehouse racking systems. Delivery unassembled; suitable for robust racking construction with Stow Type 32.
Specifications Stow frame PLFB 32
- Assembled dimensions: 6500 x 1100 mm
- 2 uprights PLUPA 32: 120 mm wide x 92 mm deep
- Incl. 2 base plates, horizontal & diagonal bracing
- Incl. associated fastening material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 5% | €442.94 | |
| 20 | 8% | €430.94 | |
| 40 | 9% | €424.94 |
Stow Frame PLFB 32 - 6250x1100 mm - compleet
Previous
Complete frame as a stable base for your pallet racking
This Stow frame of type 32 is a complete frame for building or replacing an upright section in your pallet racking system. With an assembled dimension of 6500 x 1100 mm, it forms a robust base on which beams can be safely placed. The frame consists of two PLUPA 32 uprights (120 mm wide, 92 mm deep) and is supplied with base plates, horizontal and diagonal bracing, and the associated fastening material.
Application in the warehouse
A frame determines the stability and alignment of your racking row. This component is designed for warehouses where load capacity, safety, and a neat assembly of racking sections are important, for example during reorganization, damage repair, or expansion of storage capacity.
Practical for replacement or expansion
Because this is a complete set, you can efficiently replace a frame position without combining loose components. Delivery is standard unassembled, unless otherwise ordered, which simplifies transportation and on-site handling.
Possible beam configurations and pallet heights
For a frame height of 6500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2150 | 2000 | 1900 |
| 1st beam | 4300 | 2000 | 1900 |
| 2nd beam | 6400 | 1950 | 1850 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3200 | 1450 | 1350 |
| 2nd beam | 4800 | 1450 | 1350 |
| 3rd beam | 6400 | 1450 | 1350 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5150 | 1100 | 1000 |
| 4th beam | 6400 | 1100 | 1000 |
| SKU | PLFB 32-650-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 32-650-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 32 |
| Condition | New |
| Length (mm) | 6500 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 3.5 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
