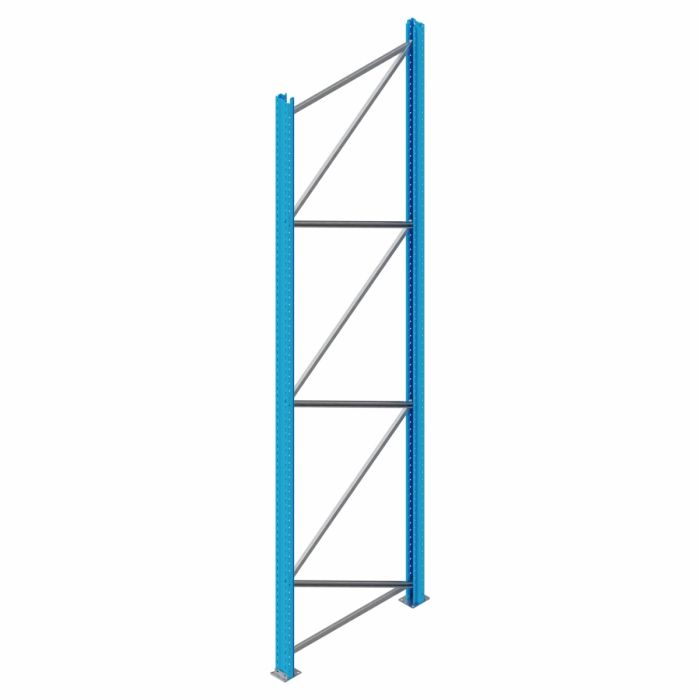

Stow Frame PLFB 32 - 3250x1100 mm - compleet
Stow complete frame PLUPA 32 3250x1100 mm (new)
New complete Stow frame type 32 for pallet racking, ideal for replacement or expansion. Height 3250 mm and depth 1100 mm, supplied with bracing, base plates and fastening material.
Specifications Stow frame PLFB 32
- Type: PLUPA 32 / Type 32
- Dimensions: 3250 x 1100 mm
- 2 uprights: 120 mm wide, 92 mm deep
- Incl. 2 base plates, horizontal & diagonal bracing
- Incl. fastening material, unassembled
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 9% | €238.56 | |
| 20 | 14% | €226.56 | |
| 40 | 16% | €220.56 |
Stow Frame PLFB 32 - 3000x1100 mm - compleet
Previous
Robust frame as stable basis for your pallet racking
This complete Stow frame from Type 32 forms the load-bearing side section of a pallet racking system and is designed for safe, stable assembly of your warehouse racking. With an assembled size of approximately 3250 x 1100 mm and uprights of type PLUPA 32 (120 mm wide and 92 mm deep), this frame is suitable for applications where reliability and dimensional accuracy are important.
Warehouse application
The frame is positioned as an upright section onto which beams are coupled, allowing you to build racking bays for pallet storage. The combination of horizontal and diagonal bracing provides the necessary stiffening, while the base plates contribute to correct anchoring to the floor.
Practical for replacement or expansion
Ideal when you want to replace a damaged frame or expand an existing Stow setup with a complete set. The frame is supplied unassembled as standard, including associated fastening material, which simplifies assembly and planning on site.
Possible beam configurations and pallet heights
For a frame height of 3250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
2 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3150 | 1400 | 1300 |
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1050 | 900 | 800 |
| 1st beam | 2100 | 900 | 800 |
| 2nd beam | 3150 | 900 | 800 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 800 | 650 | 550 |
| 1st beam | 1600 | 650 | 550 |
| 2nd beam | 2400 | 650 | 550 |
| 3rd beam | 3150 | 600 | 500 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 650 | 500 | 400 |
| 1st beam | 1300 | 500 | 400 |
| 2nd beam | 1950 | 500 | 400 |
| 3rd beam | 2550 | 450 | 350 |
| 4th beam | 3150 | 450 | 350 |
| SKU | PLFB 32-325-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 32-325-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 32 |
| Condition | New |
| Length (mm) | 3250 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 3.5 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
