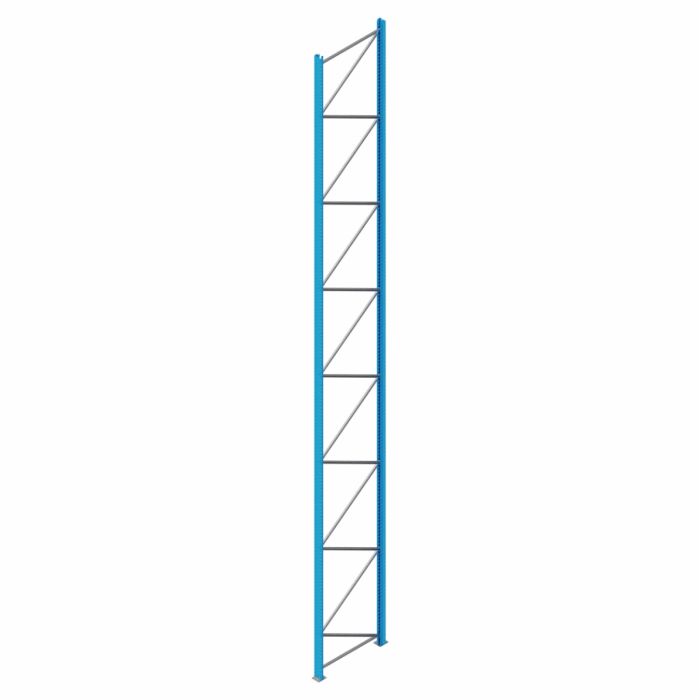

Stow Frame PLFB 155 - 9250x1100 mm - compleet
Stow complete frame Type 155 for pallet racking
New Stow frame PLFB 155 for pallet racking repair/extension. Complete frame 9250 x 1100 mm, supplied unassembled.
Specifications Stow Frame PLFB 155
- Dimension: 9250 x 1100 mm
- 2 uprights PLUPA 155: 100 x 65 mm
- Incl. 2 base plates, bracing, fixing materials
- Condition: new
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 7% | €347.17 | |
| 20 | 10% | €335.17 | |
| 40 | 12% | €329.17 |
Stow Frame PLFB 155 - 11750x1100 mm - compleet
Previous
Complete frame for a stable and safe pallet racking build-up
This complete Stow frame from the Type 155 series forms the load-bearing side of a pallet racking system and is intended for professional warehouse setups where reliability and dimensional accuracy matter. With an assembled size of approximately 9250 x 1100 mm and uprights of the PLUPA 155 type (65 mm deep), this frame provides a solid base for placing beams and building up multiple levels.
Application in the warehouse
A frame determines the height, depth and stability of the racking bay. This unit is supplied with base plates, horizontal and diagonal bracing and the required fixing materials, giving you a complete side for new construction or rebuilding of your Stow pallet racking. Delivery is standard unassembled, which is convenient for transport and on-site assembly.
Practical for replacement or extension
For B2B buyers, a complete frame is especially efficient for replacement after damage or for extending an existing setup. You receive all essential parts in one set, fitting within Stow Type 155, which limits downtime and keeps assembly predictable.
Possible beam configurations and pallet heights
For a frame height of 9250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2300 | 2150 | 2050 |
| 1st beam | 4600 | 2150 | 2050 |
| 2nd beam | 6900 | 2150 | 2050 |
| 3rd beam | 9150 | 2100 | 2000 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1850 | 1700 | 1600 |
| 1st beam | 3700 | 1700 | 1600 |
| 2nd beam | 5550 | 1700 | 1600 |
| 3rd beam | 7350 | 1650 | 1550 |
| 4th beam | 9150 | 1650 | 1550 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1550 | 1400 | 1300 |
| 1st beam | 3100 | 1400 | 1300 |
| 2nd beam | 4650 | 1400 | 1300 |
| 3rd beam | 6150 | 1350 | 1250 |
| 4th beam | 7650 | 1350 | 1250 |
| 5th beam | 9150 | 1350 | 1250 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1350 | 1200 | 1100 |
| 1st beam | 2650 | 1150 | 1050 |
| 2nd beam | 3950 | 1150 | 1050 |
| 3rd beam | 5250 | 1150 | 1050 |
| 4th beam | 6550 | 1150 | 1050 |
| 5th beam | 7850 | 1150 | 1050 |
| 6th beam | 9150 | 1150 | 1050 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1150 | 1000 | 900 |
| 1st beam | 2300 | 1000 | 900 |
| 2nd beam | 3450 | 1000 | 900 |
| 3rd beam | 4600 | 1000 | 900 |
| 4th beam | 5750 | 1000 | 900 |
| 5th beam | 6900 | 1000 | 900 |
| 6th beam | 8050 | 1000 | 900 |
| 7th beam | 9150 | 950 | 850 |
| SKU | PLFB 155-925-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 155-925-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 155 |
| Condition | New |
| Length (mm) | 9250 |
| Width (mm) | 100 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2.25 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
