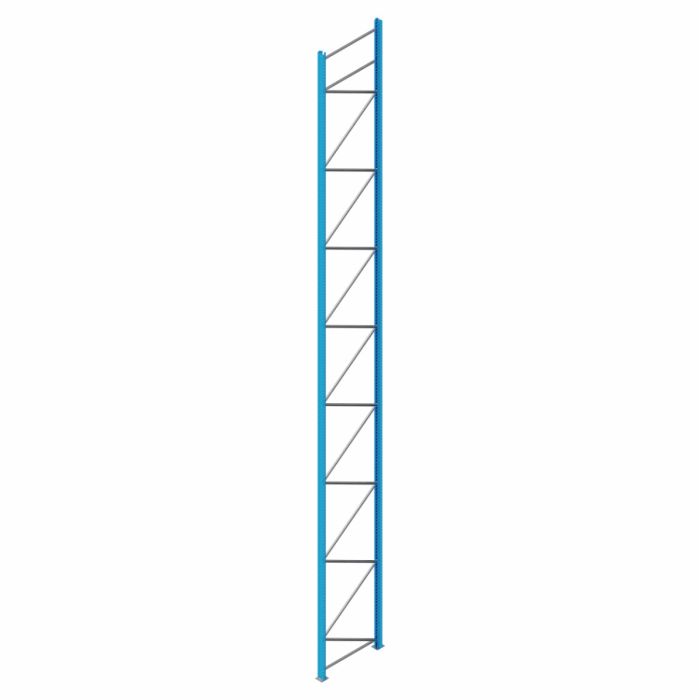

Stow Frame PLFB 155 - 10250x1100 mm - compleet
Stow complete frame PLFB 155 10250x1100 mm
Complete Stow frame for pallet racking, type 155, suitable for replacement or extension. Supplied new, unassembled unless ordered otherwise.
Specifications
- Assembled dimensions: 10250 x 1100 mm
- 2 PLUPA 155 uprights (100 x 65 mm)
- 2 base plates
- Horizontal and diagonal bracing
- Incl. mounting hardware
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 6% | €379.70 | |
| 20 | 9% | €367.70 | |
| 40 | 11% | €361.70 |
Stow Frame PLFB 155 - 10000x1100 mm - compleet
Previous
Complete frame as a stable base for safe pallet racking
This Stow frame from type 155 is a complete side structure for a pallet racking system, intended as the load-bearing base onto which beams are mounted. With an assembled size of approximately 10250 x 1100 mm, the frame provides the height and depth needed for a robust warehouse layout. The construction consists of two PLUPA 155 uprights, combined with base plates and a set of horizontal and diagonal bracing for stability.
Application in the warehouse
A frame determines the load-bearing structure and alignment of your racking row. This component is used for new installations or for repairing a damaged racking section, so that loading and safety are restored. The frame is supplied including matching mounting hardware and is delivered unassembled as standard, unless ordered otherwise.
Practical for replacement or extension
For B2B buyers, a complete frame is particularly useful when you want to quickly extend or replace one side of a racking system without combining separate components. By choosing Stow type 155, you maintain uniformity within your setup and minimize downtime during maintenance or reconfiguration.
Possible beam configurations and pallet heights
For a frame height of 10250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2550 | 2400 | 2300 |
| 1st beam | 5100 | 2400 | 2300 |
| 2nd beam | 7650 | 2400 | 2300 |
| 3rd beam | 10150 | 2350 | 2250 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2050 | 1900 | 1800 |
| 1st beam | 4100 | 1900 | 1800 |
| 2nd beam | 6150 | 1900 | 1800 |
| 3rd beam | 8150 | 1850 | 1750 |
| 4th beam | 10150 | 1850 | 1750 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1700 | 1550 | 1450 |
| 1st beam | 3400 | 1550 | 1450 |
| 2nd beam | 5100 | 1550 | 1450 |
| 3rd beam | 6800 | 1550 | 1450 |
| 4th beam | 8500 | 1550 | 1450 |
| 5th beam | 10150 | 1500 | 1400 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1450 | 1300 | 1200 |
| 1st beam | 2900 | 1300 | 1200 |
| 2nd beam | 4350 | 1300 | 1200 |
| 3rd beam | 5800 | 1300 | 1200 |
| 4th beam | 7250 | 1300 | 1200 |
| 5th beam | 8700 | 1300 | 1200 |
| 6th beam | 10150 | 1300 | 1200 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1300 | 1150 | 1050 |
| 1st beam | 2600 | 1150 | 1050 |
| 2nd beam | 3900 | 1150 | 1050 |
| 3rd beam | 5150 | 1100 | 1000 |
| 4th beam | 6400 | 1100 | 1000 |
| 5th beam | 7650 | 1100 | 1000 |
| 6th beam | 8900 | 1100 | 1000 |
| 7th beam | 10150 | 1100 | 1000 |
| SKU | PLFB 155-1025-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 155-1025-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 155 |
| Condition | New |
| Length (mm) | 10250 |
| Width (mm) | 100 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2.25 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
