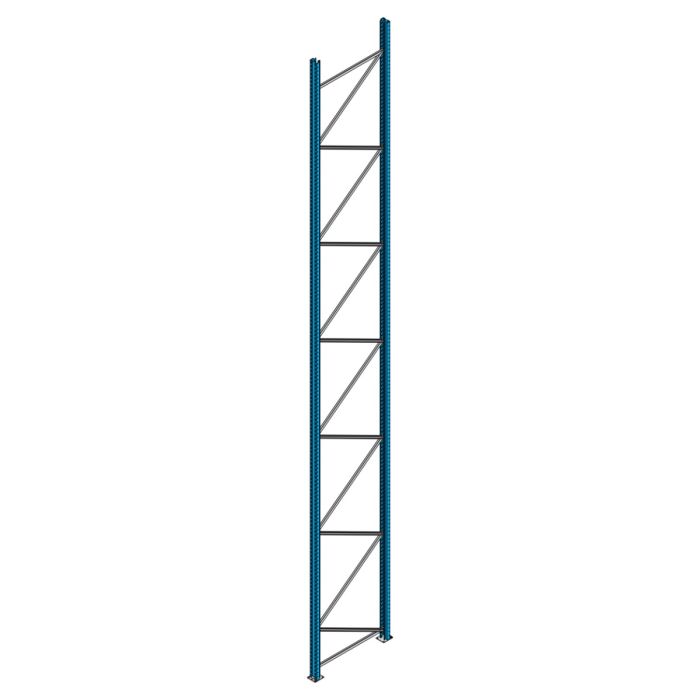

Stow Frame PLFB 155 - 8250x1100 mm - compleet
Stow complete frame PLFB 155 8250x1100mm (new)
New Stow pallet racking frame type 155 (PLFB/PLUPA) for replacement or expansion. Supplied complete with uprights, bracing, base plates and mounting hardware; suitable for warehouse fit-out.
Specifications Stow frame type 155
- 8250 x 1100 mm
- 2 uprights PLUPA 155 (100x65 mm)
- Including 2 base plates, horizontal & diagonal bracing
- Including mounting hardware
- Supplied unassembled
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 7% | €314.65 | |
| 20 | 11% | €302.65 | |
| 40 | 13% | €296.65 |
Stow Frame PLFB 155 - 8000x1100 mm - compleet
Previous
Complete pallet racking frame for a stable and safe build-up
This complete Stow frame is a solid basis for building up or repairing a pallet racking. With an assembled size of approximately 8250 x 1100 mm, it provides the support structure on which beams and levels are placed. The frame consists of two uprights from the PLUPA 155 series with a profile of 100 x 65 mm, including base plates, horizontal and diagonal bracing and the associated mounting hardware.
Application in the warehouse
In a warehouse, the quality of the frame determines the stability of the entire racking bay. This frame is used as a standing element at the sides of a row of pallet racking and contributes to a tight alignment and reliable load transfer to the floor via the base plates.
Practical for replacement or expansion
Useful for B2B maintenance and projects where quick and consistent work is required: one complete set instead of loose parts. Delivery is unassembled, unless ordered otherwise, which keeps transport and handling efficient on site.
Possible beam configurations and pallet heights
For a frame height of 8250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2750 | 2600 | 2500 |
| 1st beam | 5450 | 2550 | 2450 |
| 2nd beam | 8150 | 2550 | 2450 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2050 | 1900 | 1800 |
| 1st beam | 4100 | 1900 | 1800 |
| 2nd beam | 6150 | 1900 | 1800 |
| 3rd beam | 8150 | 1850 | 1750 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1650 | 1500 | 1400 |
| 1st beam | 3300 | 1500 | 1400 |
| 2nd beam | 4950 | 1500 | 1400 |
| 3rd beam | 6550 | 1450 | 1350 |
| 4th beam | 8150 | 1450 | 1350 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1400 | 1250 | 1150 |
| 1st beam | 2750 | 1200 | 1100 |
| 2nd beam | 4100 | 1200 | 1100 |
| 3rd beam | 5450 | 1200 | 1100 |
| 4th beam | 6800 | 1200 | 1100 |
| 5th beam | 8150 | 1200 | 1100 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1200 | 1050 | 950 |
| 1st beam | 2400 | 1050 | 950 |
| 2nd beam | 3550 | 1000 | 900 |
| 3rd beam | 4700 | 1000 | 900 |
| 4th beam | 5850 | 1000 | 900 |
| 5th beam | 7000 | 1000 | 900 |
| 6th beam | 8150 | 1000 | 900 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1050 | 900 | 800 |
| 1st beam | 2100 | 900 | 800 |
| 2nd beam | 3150 | 900 | 800 |
| 3rd beam | 4150 | 850 | 750 |
| 4th beam | 5150 | 850 | 750 |
| 5th beam | 6150 | 850 | 750 |
| 6th beam | 7150 | 850 | 750 |
| 7th beam | 8150 | 850 | 750 |
| SKU | PLFB 155-825-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 155-825-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 155 |
| Condition | New |
| Length (mm) | 8250 |
| Width (mm) | 100 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2.25 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
