Mecalux beam TB-S 60 - 950 x 60 x 50 mm
New Mecalux beam 950 mm (TB-S)
New Mecalux TB-S beam for pallet racking. Size 950 x 60 x 50 mm, supplied with 2 locking pins.
Specifications Mecalux beam
- Brand: Mecalux
- Type: TB-S
- Condition: new
- Dimensions: 950 x 60 x 50 mm
- Includes: 2 locking pins
- Suitable for: one euro pallet (800 x 1200 mm)
New beam for quick replacement or extension of your pallet racking

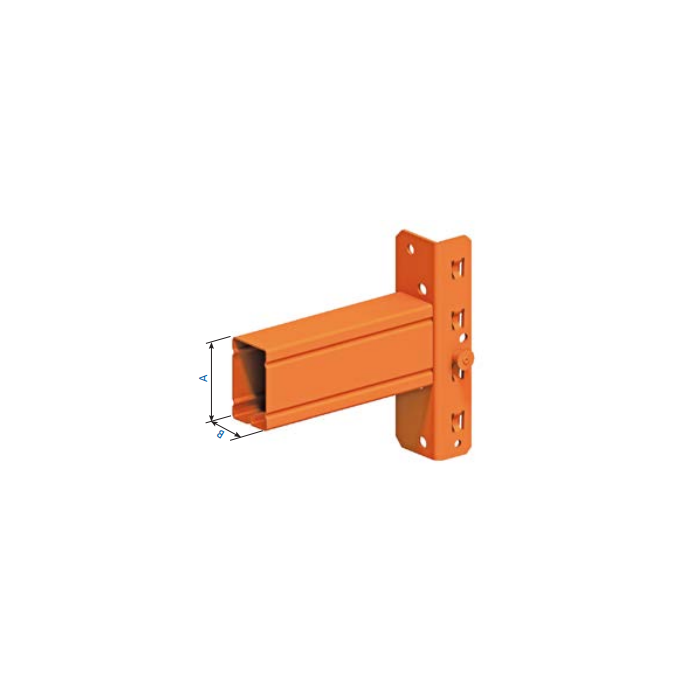

This new Mecalux beam of type TB-S is used in pallet racking as a support between two uprights, thereby determining the bay width and layout of your storage. The length of 950 mm and the profile of 60 x 50 mm make this beam suitable for regular warehouse applications. Includes 2 locking pins for safe installation.
Application in the warehouse
In daily logistics, the right beam determines the stability and load capacity of each storage level. This beam is used when building or repairing racking bays, for example in case of damage repair, reconfiguration, or adding extra levels within an existing Mecalux pallet racking system.
Practical for replacement or extension
For technical services, warehouse fitters, and maintenance parties, this is a practical choice when a suitable part is quickly needed. The correct size and locking mechanism contribute to a neat, safe installation without unexpected surprises afterwards.
Suitable for pallets
With a beam length of 950 mm, one euro pallet (800 x 1200 mm) fits on this pair of beams. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 800 mm. This size matches bays specifically designed for this type of pallet.
| SKU | TB-S60-0950-N |
|---|---|
| Weight | 6.430000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201795 |
| Product Group | Beam |
| Beam Type | TB-S |
| Condition | New |
| Beam Length | 950 |
| Height (mm) | 60 |
| Depth (mm) | 50 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
