Mecalux beam TB-S - 2225 x 80 mm

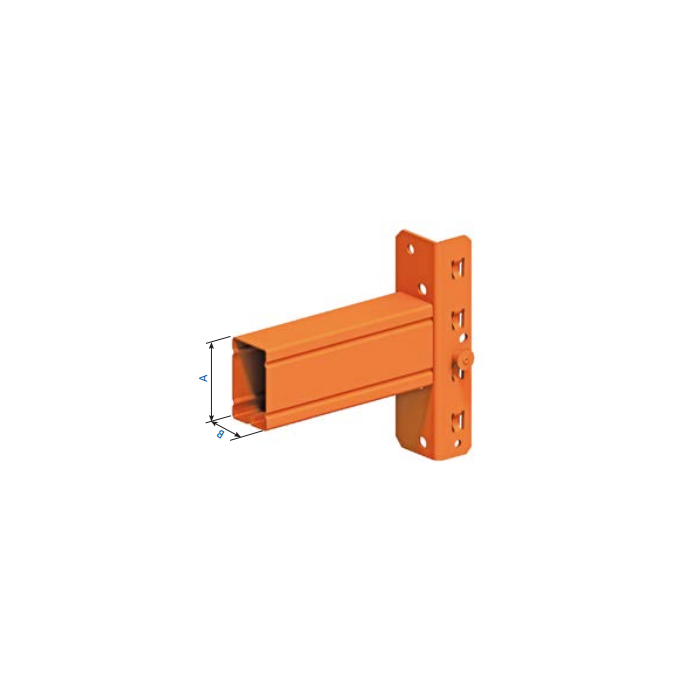

New Mecalux TB-S tubular beam 2225 x 80 mm
This new Mecalux 2C beam TB-S is a tubular beam for pallet racking, ideal as a replacement beam or extension. Length 2225 mm, height 80 mm; with integrated locking pin for quick, secure installation.
Specifications
- Brand: Mecalux
- Type: TB-S 2C beam (tubular beam)
- Dimensions: 2225 x 80 x 50 mm
- Locking: integrated locking pin
- Condition: new
- Suitable for: two block pallets (1000 x 1200 mm) side by side
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 15 | 15% | €46.10 | |
| 30 | 22% | €42.31 | |
| 50 | 30% | €37.97 |
Mecalux beam TB-S - 2225 x 100 mm
Previous
Tubular beam as a pallet racking component for quickly building safe load levels
This new Mecalux 2C beam type TB-S is a lightweight tubular beam for pallet racking and forms the support point between two uprights. With a length of 2225 mm and a beam height of 80 mm, this component is suitable for creating a stable level without unnecessary complexity in installation. The integrated locking pin ensures direct locking, so you don't need to install or order separate locking components.
Application in the warehouse
In a busy warehouse, beams determine the layout, flow, and safety of the racking. This TB-S tubular beam is used to build racking bays for pallet locations or carriers, where the fixed locking helps limit unwanted lifting out during handling and keeps the racking assembly consistent.
Practical for replacement or extension
For damage repair, maintenance, or expansion within a Mecalux setup, an identical beam offers an efficient solution. You maintain the same installation method and save time on the work floor thanks to the integrated locking, ideal for B2B buyers who want to quickly deploy reliable racking materials.
Suitable for pallets
With a beam length of 2225 mm, this beam pair can accommodate two block pallets (1000 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 1000 mm. Alternatively, a combination of 1 Euro pallet and 1 block pallet (two pallets total) also fits. This size matches bays specifically designed for this type of pallet.
| SKU | TB-S80-2225 |
|---|---|
| Weight | 7.630000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201481 |
| Product Group | Beam |
| Beam Type | TB-S |
| Condition | New |
| Beam Length | 2225 |
| Height (mm) | 80 |
| Depth (mm) | 50 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
