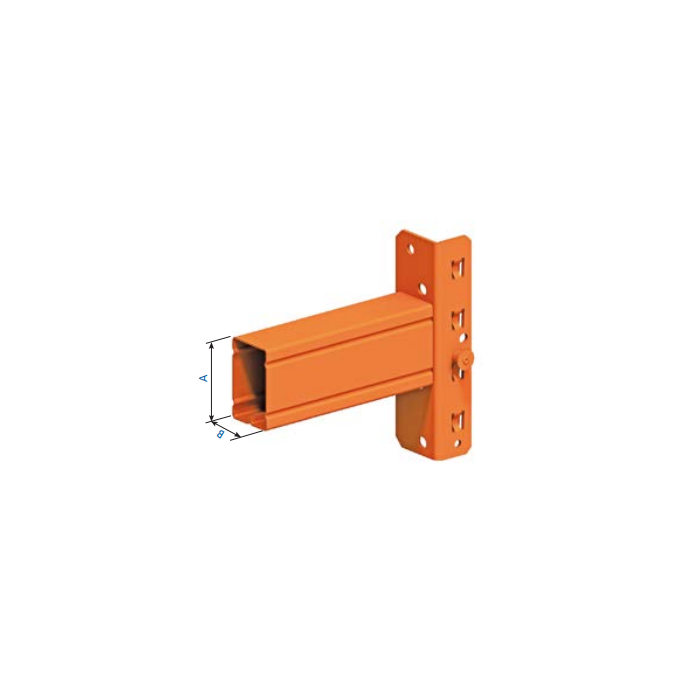

Mecalux beam TB-S - 3600 x 120 mm
Mecalux TB-S box beam 3600x120
New Mecalux 2C box beam TB-S 3600x120x50 mm for pallet racking, suitable for replacement, damage repair or expansion with quick, safe assembly thanks to integrated locking pin.
Specifications
- Brand: Mecalux
- Type: TB-S 2C box beam
- Condition: new
- Dimension: 3600 x 120 x 50 mm
- Locking: integrated locking pin
- Suitable for: four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 15 | 15% | €79.69 | |
| 30 | 22% | €73.13 | |
| 50 | 30% | €65.63 |
Mecalux beam TB-S 60 - 1000x60x50 mm
Previous
Box beam as a reliable pallet racking component for quick bay assembly
This new Mecalux TB-S 2C box beam is a horizontal load-bearing beam for pallet racking, intended to firmly connect frames together and create a stable storage level. With a length of 3600 mm and a beam height of 120 mm, this is a practical choice when you want to combine a neat and consistent beam appearance with quick assembly. The integrated locking pin ensures that additional locking components are not needed.
Application in the warehouse
In daily use, the beam carries the load between the uprights and forms the basis for safe pallet storage per level. The integrated locking helps secure the connection immediately during assembly, which reduces the chance of it coming loose and supports the throughput time on the work floor.
Practical for replacement or expansion
Ideal for maintenance, damage repair or expansion within a Mecalux setup: you order one complete component with locking, making planning and assembly easier. A professional solution with dimensions 3600 x 120 x 50 mm for a predictable assembly of your racking bays.
Suitable for pallets
With a beam length of 3600 mm, this beam pair accommodates four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 806.2 mm. This dimension matches bays specifically arranged for this type of pallet.
| SKU | TB-S120-3600 |
|---|---|
| Weight | 15.480000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201505 |
| Product Group | Beam |
| Beam Type | TB-S |
| Condition | New |
| Beam Length | 3600 |
| Height (mm) | 120 |
| Depth (mm) | 50 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 3-5 weeks |
