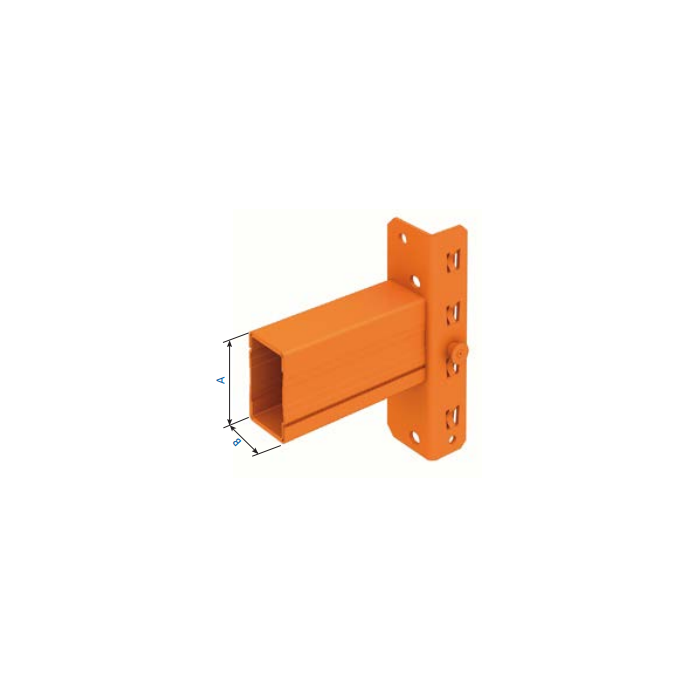

Mecalux beam 2C-S - 3900 x 150 mm
New Mecalux 2C-S beam 3900x150
Robust pallet racking beam for quick replacement or expansion; new and with integrated locking pin for secure installation in Mecalux pallet racking.
Specifications
- Brand: Mecalux
- Type: 2C-S beam
- Dim.: 3900 x 150 x 50 mm
- Condition: new
- Integrated locking pin
- Suitable for: four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 15 | 15% | €112.87 | |
| 30 | 22% | €103.58 | |
| 50 | 30% | €92.95 |
Mecalux beam 2C-S - 3900 x 130 mm
Previous
Robust beam for fast, safe assembly of pallet racking bays
This new Mecalux 2C-S pallet racking beam is intended as a load-bearing component between the frames and forms the basis for a stable bay layout. With a length of 3900 mm and a height of 150 mm, the beam supports pallet storage in a professional, well-organized manner. The integrated locking pin is built directly into the design, so the connection remains secured without the need for separate locking pins.
Application in the warehouse
In a pallet racking system, beams determine the bay width and transfer the load to the uprights. This 2C beam is suitable for setting up new racking bays or adjusting existing locations, for example during reorganization, capacity expansion, or replacing components after damage.
Practical for replacement or expansion
For technical departments and B2B buyers, the Mecalux 2C-S version offers an efficient choice within the same series. The integrated locking speeds up assembly and reduces the risk of missing components, while the dimensions of 3900 x 150 x 50 mm help ensure the right beam is used quickly and without delay.
Suitable for pallets
With a beam length of 3900 mm, this pair of beams accommodates four euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, resulting in an average maximum pallet width of 881.2 mm. This dimension corresponds to bays specifically configured for this type of pallet.
| SKU | 2C-S1515-3900 |
|---|---|
| Weight | 25.250000 |
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Mecalux |
| Artikelnummer Fabrikant | 1100201466 |
| Product Group | Beam |
| Beam Type | 2C-S |
| Condition | New |
| Beam Length | 3900 |
| Height (mm) | 150 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2001 |
| Delivery Time Indication | 4-6 weeks |
