Mecalux Frame 80 - 5000 x 1100 mm - compleet

Complete frame as a solid base for your pallet racking configuration

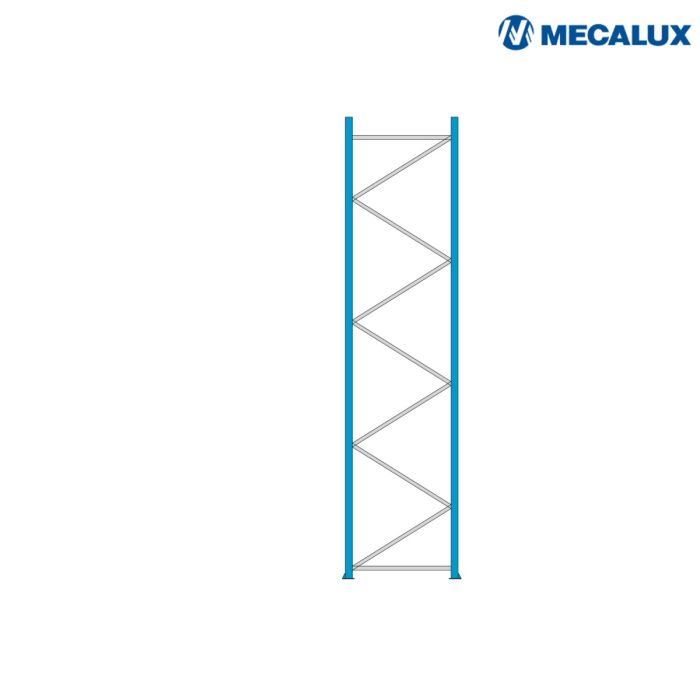

This Mecalux pallet racking component is a complete frame from the Type 80 system, intended as the load-bearing side structure of your racking. With two 80 mm wide uprights and an upright length of 5000 mm, the frame forms a stable base for safely building racking bays. The depth of 1100 mm matches common pallet sizes and helps keep the storage position compact and organised.

Application in the warehouse

Frames determine the height, stability and load-bearing structure of your pallet racking. This complete Mecalux frame is used for new installations or reconfiguration of warehouse racking and is suitable when you want to maintain consistent construction within Type 80. The combination of horizontal and diagonal bracing creates a sturdy construction that distributes the forces within the racking bay effectively.

Practical for replacement or extension

For B2B buyers, this frame is practical when you want to quickly replace a damaged frame or expand capacity without having to gather individual components. Includes base plates and associated fixing materials, allowing you to assemble efficiently and make your racking configuration operational again.

Possible beam configurations and pallet heights

For a frame height of 5000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

2 beams

3 beams

4 beams

5 beams
