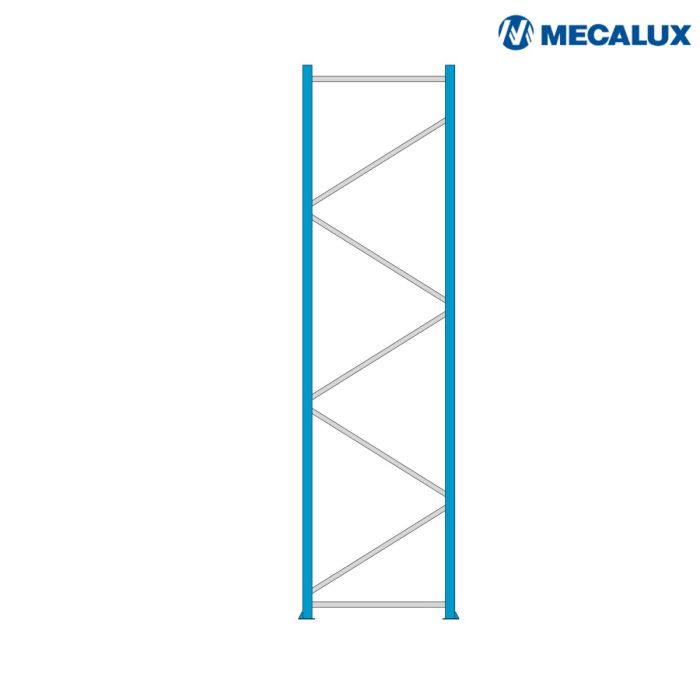

Mecalux Frame 80 - 4000 x 1100 mm - compleet

Complete pallet racking frame for a stable and safe base

This Mecalux frame (Type 80) forms the load-bearing side of a pallet racking system and is intended for professional warehouse fit-out where reliability and dimensional accuracy matter. The complete frame is supplied with two uprights, 80 mm wide and 4000 mm high, including base plates, horizontal and diagonal bracing and the associated mounting hardware. This gives you an immediate solid base to build racking bays or repair an existing installation.

Application in the warehouse

Frames transfer the load of beams and pallets down to the floor and determine the height and stability of the racking row. This frame with 1100 mm depth is suitable for standard pallet storage and helps keep the structure straight, rigid and safe thanks to the bracing and sturdy base plates.

Practical for replacement or extension

For B2B buyers, a complete frame is efficient for damage repair, reconfiguration or extension: you replace the core components in one go without having to source individual parts. The Mecalux Type 80 version is compatible with systems within the same series and supports quick on-site assembly.

Possible beam configurations and pallet heights

For a frame height of 4000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

2 beams

3 beams

4 beams

5 beams
