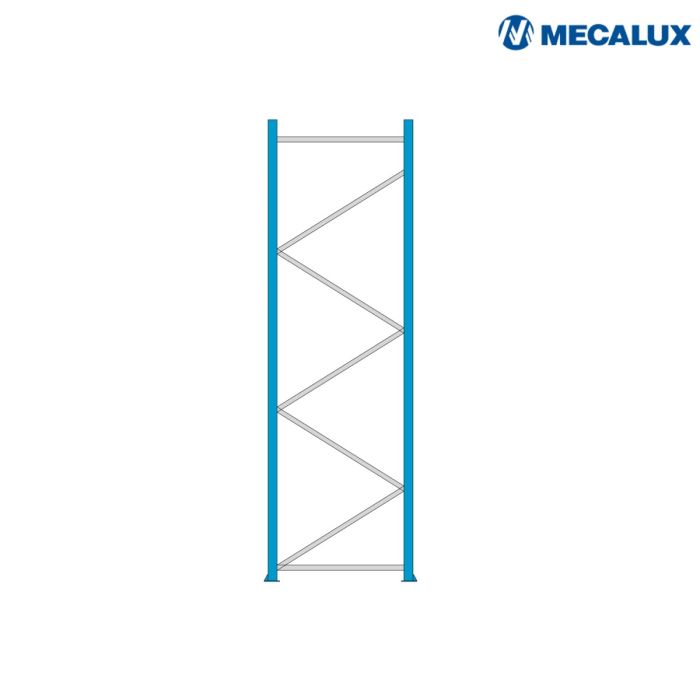

Mecalux Frame 80 - 3500 x 1100 mm - compleet

Complete frame as a sturdy base for your pallet racking

This Mecalux Type 80 frame is a complete pallet racking component that serves as the load-bearing side of your racking setup. With two 80 mm wide uprights and an upright length of 3500 mm, the frame forms a stable base on which beams can be safely built up. Thanks to the included base plates and the accompanying fixing materials, this frame is suitable for neat, professional installation in your warehouse.

Application in the warehouse

Frames determine the height and stability of a pallet racking system and are essential for new installations, reconfigurations or repairs after damage. The combination of horizontal and diagonal bracing provides the required rigidity, so that your storage setup remains reliable during daily handling with pallet trucks and forklifts.

Practical for replacement or extension

For technical services and warehouse managers, a complete frame is ideal when you want to quickly replace a section or extend an existing Mecalux Type 80 setup, without having to assemble loose components. You order one coherent unit with the key components included directly.

Possible beam configurations and pallet heights

For a frame height of 3500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):

2 beams

3 beams

4 beams

5 beams
