Still Frame - S-PLFB 29-1200-11-N - Compleet
Complete Still frame Type 29 for pallet racking

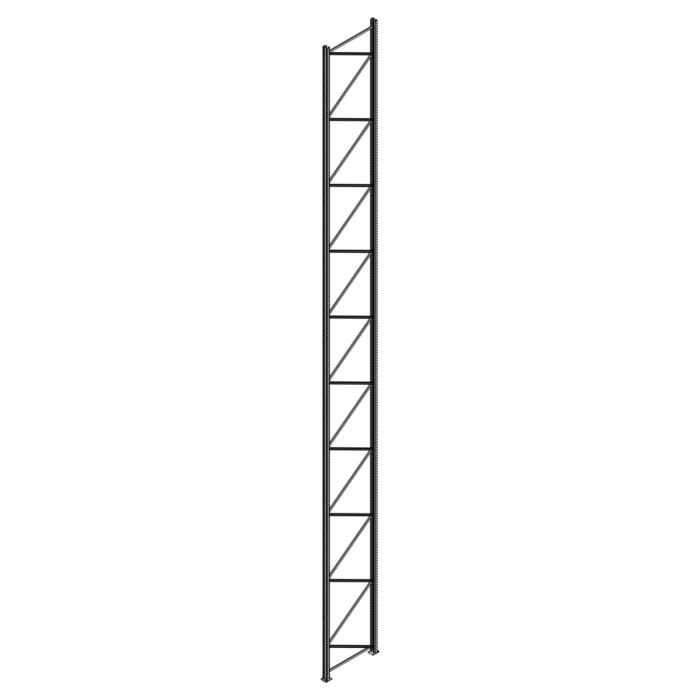

New Still frame S-PLFB 29-1200-11-N for replacement/extension of warehouse racking; 12000x1100 mm, grey NCS S 4005, supplied unassembled.
Still frame specifications
- Type: PLUPA 29 (Still)
- Dimensions: 12000 x 1100 mm
- Uprights: 2x 120x92 mm
- Incl.: 2 base plates, bracing, fastening material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 5% | €510.08 | |
| 20 | 7% | €498.08 | |
| 40 | 8% | €492.08 |
Still Frame - S-PLFB 29-1175-11-N - Compleet
Previous
Complete frame as stable foundation for safe pallet racking construction
This complete Still frame is an essential pallet racking component for building or restoring warehouse racking. It forms the vertical load-bearing structure on which beams are placed and largely determines the stability of the racking bay. Finished in grey (NCS S 4005) and supplied as a complete set with uprights, bracing, base plates and fastening material.
Application in the warehouse
With an assembled dimension of 12000 x 1100 mm, this frame is suitable for racking where a fixed depth and robust construction are required. The two PLUPA 29 uprights (120 mm wide, 92 mm deep) are connected with horizontal and diagonal bracing, allowing the frame to effectively absorb forces from loading and handling.
Practical for replacement or extension
Ideal for B2B buyers and maintenance departments who need to quickly deploy a complete frame for expansion, damage repair or revision. The delivery is standard unassembled, so transport and storage remain efficient and assembly can take place on site.
Possible beam configurations and pallet heights
For a frame height of 12000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2400 | 2250 | 2150 |
| 1st beam | 4800 | 2250 | 2150 |
| 2nd beam | 7200 | 2250 | 2150 |
| 3rd beam | 9550 | 2200 | 2100 |
| 4th beam | 11900 | 2200 | 2100 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 4000 | 1850 | 1750 |
| 2nd beam | 6000 | 1850 | 1750 |
| 3rd beam | 8000 | 1850 | 1750 |
| 4th beam | 9950 | 1800 | 1700 |
| 5th beam | 11900 | 1800 | 1700 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1700 | 1550 | 1450 |
| 1st beam | 3400 | 1550 | 1450 |
| 2nd beam | 5100 | 1550 | 1450 |
| 3rd beam | 6800 | 1550 | 1450 |
| 4th beam | 8500 | 1550 | 1450 |
| 5th beam | 10200 | 1550 | 1450 |
| 6th beam | 11900 | 1550 | 1450 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1500 | 1350 | 1250 |
| 1st beam | 3000 | 1350 | 1250 |
| 2nd beam | 4500 | 1350 | 1250 |
| 3rd beam | 6000 | 1350 | 1250 |
| 4th beam | 7500 | 1350 | 1250 |
| 5th beam | 9000 | 1350 | 1250 |
| 6th beam | 10450 | 1300 | 1200 |
| 7th beam | 11900 | 1300 | 1200 |
| SKU | S-PLFB 29-1200-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PLFB 29-1200-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 29 |
| Condition | New |
| Length (mm) | 12000 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S235 |
| Finish | Coated |
| Color | NCS S 4005 |
| Delivery Time Indication | 3-5 weeks |
