Still Frame - S-PLFB 29-1000-11-N - Compleet

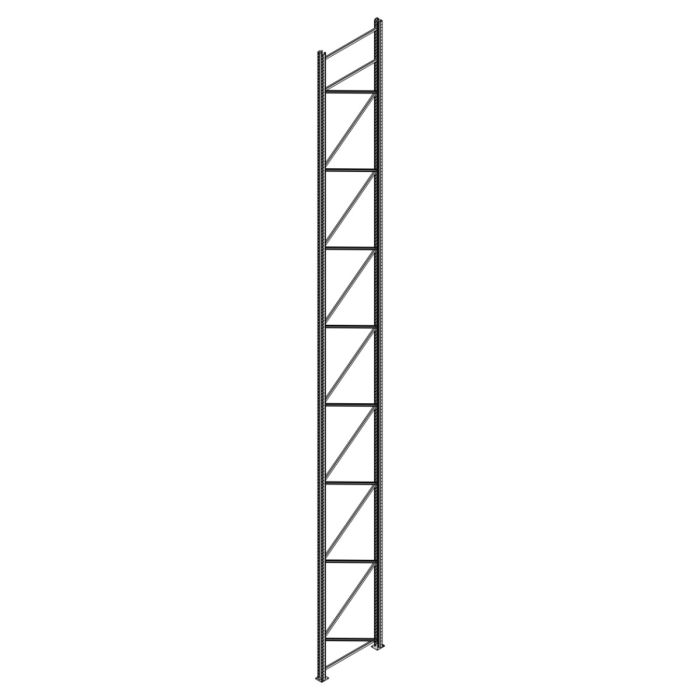

Still complete frame Type 29 (new)
Complete Still pallet racking frame Type 29 for assembly/expansion of warehouse racking systems. New, grey NCS S 4005, 10000x1100 mm; delivered unassembled.
Specifications
- Brand: Still, Type 29 (S-PLFB 29-1000-11-N)
- Dimensions: 10000x1100 mm
- Uprights: 2x PLUPA 29 120x92 mm
- Incl.: 2 base plates, horizontal & diagonal bracing, fastening material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 5% | €430.71 | |
| 20 | 8% | €418.71 | |
| 40 | 9% | €412.71 |
Still Frame - S-PLFB 29-975-11-N - Compleet
Previous
Complete frame as stable foundation for safe pallet racking assembly
This complete Still frame of type 29 forms the load-bearing side of a pallet racking system and is designed for reliable assembly or replacement in professional warehouse environments. With an assembled dimension of 10000 x 1100 mm and a grey finish (NCS S 4005), it offers a neat, uniform appearance within existing racking rows. The frame is delivered as a complete package with uprights, base plates, bracing and matching fastening material.
Warehouse application
A frame carries the beam levels and determines the stability of the racking aisle. This Still frame is constructed with two PLUPA 29 uprights (120 mm wide, 92 mm deep) and bracing sets for rigidity, making it suitable for setting up or restoring pallet racking sections where reliability and correct alignment are essential.
Practical for replacement or expansion
For maintenance services and logistics companies, this is an efficient choice when a frame is damaged or a racking row is being extended. Delivery is unassembled (unless otherwise ordered), which simplifies transport and handling and enables on-site assembly with the supplied components.
Possible beam configurations and pallet heights
For a frame height of 10000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2500 | 2350 | 2250 |
| 1st beam | 5000 | 2350 | 2250 |
| 2nd beam | 7450 | 2300 | 2200 |
| 3rd beam | 9900 | 2300 | 2200 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2000 | 1850 | 1750 |
| 1st beam | 4000 | 1850 | 1750 |
| 2nd beam | 6000 | 1850 | 1750 |
| 3rd beam | 7950 | 1800 | 1700 |
| 4th beam | 9900 | 1800 | 1700 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1650 | 1500 | 1400 |
| 1st beam | 3300 | 1500 | 1400 |
| 2nd beam | 4950 | 1500 | 1400 |
| 3rd beam | 6600 | 1500 | 1400 |
| 4th beam | 8250 | 1500 | 1400 |
| 5th beam | 9900 | 1500 | 1400 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1450 | 1300 | 1200 |
| 1st beam | 2900 | 1300 | 1200 |
| 2nd beam | 4300 | 1250 | 1150 |
| 3rd beam | 5700 | 1250 | 1150 |
| 4th beam | 7100 | 1250 | 1150 |
| 5th beam | 8500 | 1250 | 1150 |
| 6th beam | 9900 | 1250 | 1150 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1250 | 1100 | 1000 |
| 1st beam | 2500 | 1100 | 1000 |
| 2nd beam | 3750 | 1100 | 1000 |
| 3rd beam | 5000 | 1100 | 1000 |
| 4th beam | 6250 | 1100 | 1000 |
| 5th beam | 7500 | 1100 | 1000 |
| 6th beam | 8700 | 1050 | 950 |
| 7th beam | 9900 | 1050 | 950 |
| SKU | S-PLFB 29-1000-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Still |
| Artikelnummer Fabrikant | PLFB 29-1000-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 29 |
| Condition | New |
| Length (mm) | 10000 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S235 |
| Finish | Coated |
| Color | NCS S 4005 |
| Delivery Time Indication | 3-5 weeks |
