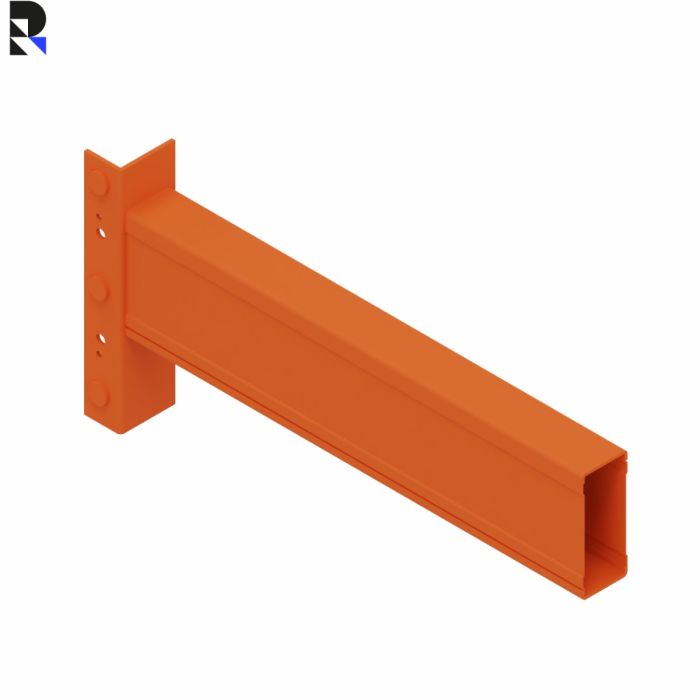

Polypal Beam 1215 - 3300 x 120 x 50
Polypal 2C beam 3300 mm (new)
New Polypal beam 1215 of 3300 x 120 x 50 mm for pallet racking, ideal as a replacement beam or extension; supplied with 2 locking pins.
Specifications
- Brand: Polypal
- Type: 2C beam (1215)
- Dimension: 3300 x 120 x 50 mm
- Material thickness: 1.50 mm
- Incl.: 2 locking pins
- Suitable for: three euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side
Polypal Beam 1215 - 3400 x 120 x 50
Previous
Robust 2C beam for stable storage levels in your pallet racking
This Polypal 2C beam is intended for building a sturdy beam pair in a pallet racking system, allowing you to create safe and well-organized storage levels. With a length of 3300 mm and a beam profile of 120 x 50 mm, this is a widely used solution for professional warehouse fitting. The beam is supplied including 2 locking pins, so you can correctly secure the connection to the uprights.
Application in the warehouse
In the warehouse, the beam forms the load-bearing basis between two uprights, allowing you to determine the layout per bay and per level. This version with 1.50 mm material thickness is suitable for situations where a reliable, repeatable setup is important for daily internal transport and varying loads.
Practical for replacement or extension
Ideal for companies wanting to extend a Polypal setup or quickly replace a damaged beam. Thanks to the 2C type and the included locking pins, you order a directly usable, complete pallet racking component, suited to an efficient and safe warehouse operation.
Suitable for pallets
With a beam length of 3300 mm, this beam pair accommodates three euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 1000 mm. Alternatively, a combination of 1 euro pallet and 2 block pallets (three pallets in total) also fits. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | 1215-3300-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Spain |
| Manufacturer | Polypal |
| Artikelnummer Fabrikant | 1215-3300 |
| Product Group | Beam |
| Beam Type | 1215 |
| Condition | New |
| Beam Length | 3300 |
| Height (mm) | 120 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2004 |
| Delivery Time Indication | 4-6 weeks |
