New Armes/Ferretto Beam - GR 2300 x 90 x 50
New Armes / Ferretto beam 2300 mm (GR)
New Armes / Ferretto beam GR for pallet racking. Size 2300 x 90 x 50 mm, material thickness 1.25 mm, supplied with 2 locking pins.
Specifications Armes / Ferretto beam
- Brand: Armes / Ferretto
- Type: GR
- Condition: new
- Dimension: 2300 x 90 x 50 mm
- Material thickness: 1.25 mm
- Included: 2 locking pins
- Suitable for: two block pallets (1000 x 1200 mm) side by side
New Armes/Ferretto Beam - GR 1800 x 90 x 50
Previous
Reliable beam for a sturdy build-up of your racking bay

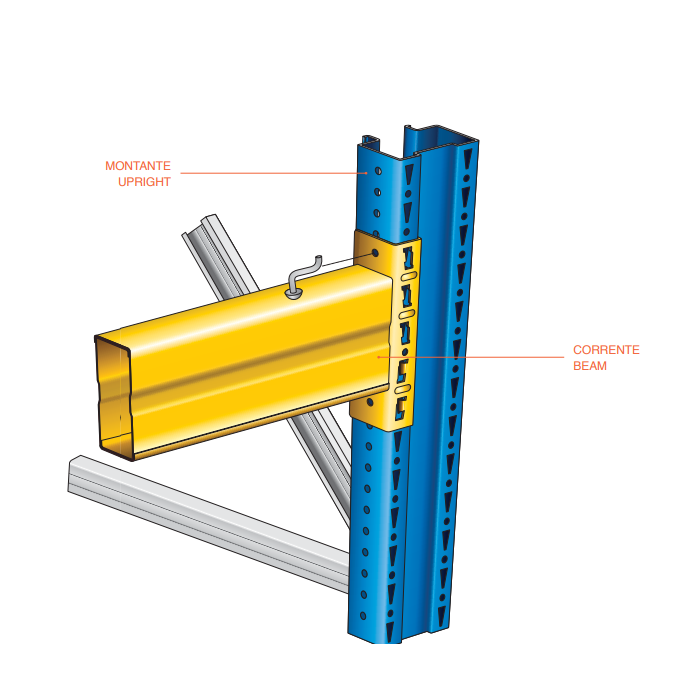

This new Armes / Ferretto beam of the GR type is used in pallet racking as a support between two uprights, thereby determining the bay width and the layout of your storage. The length of 2300 mm and the profile of 90 x 50 mm make this beam suitable for regular warehouse applications. The material thickness of 1.25 mm contributes to a robust construction. Includes 2 locking pins for safe assembly.
Application in the warehouse
A beam connects two uprights and determines the bay width and the layout of your storage. This version is suitable for restoring a level, restoring a neat bay size and ensuring safe handling with a forklift or reach truck.
Practical for replacement or expansion
For companies that value continuity, this is an efficient choice for maintenance or refurbishment of an existing racking system. You replace in a targeted way with the correct Armes / Ferretto beam and maintain consistent dimensions, so your racking materials remain uniform and operational.
Suitable for pallets
With a beam length of 2300 mm, two block pallets (1000 x 1200 mm) fit side by side on this beam pair. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between the pallets is maintained, which amounts to an average maximum pallet width of 1037.5 mm. This size matches bays specifically arranged for this type of pallet.
| SKU | 8C4C18009-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Armes Ferretto |
| Artikelnummer Fabrikant | 8C4C18009 |
| Product Group | Beam |
| Beam Type | GR |
| Condition | New |
| Beam Length | 2300 |
| Height (mm) | 90 |
| Depth (mm) | 50 |
| Connector Type | 4-Hook |
| Thickness (mm) | 1.25 |
| Finish | Coated |
| Delivery Time Indication | 4-6 weeks |
