New Armes/Ferretto Beam - GR 1800 x 70 x 50
New Armes/Ferretto beam GR 1800 mm
New Armes/Ferretto 2C beam for pallet racking: coated, 1800 x 70 x 50 mm. Ideal as a replacement beam for warehouse fit-out; supplied with 2 locking pins.
Specifications Armes beam GR
- Type: 2C beam (pallet racking)
- Length: 1800 mm
- Height: 70 mm
- Size: 1800 x 70 x 50 mm
- Thickness: 1.2 mm
- Finish: coated
- Includes: 2 locking pins
- Condition: new
- Suitable for: two euro pallets (800 x 1200 mm) side by side
New Armes/Ferretto Beam - GR 1800 x 60 x 50
Previous
Robust 2C beam for stable and safe pallet racking

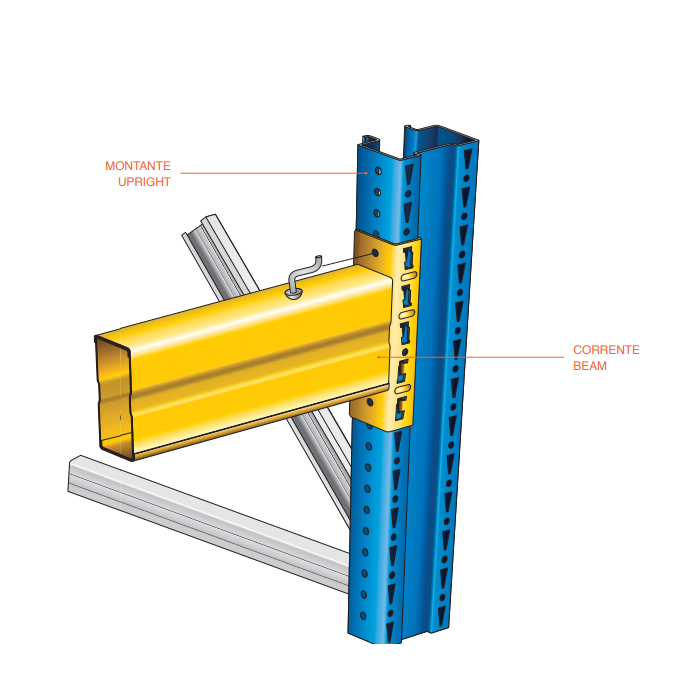

This new Armes/Ferretto GR beam is intended as a load-bearing horizontal connection between the uprights of your pallet racking. With a beam length of 1800 mm and a beam height of 70 mm, it provides a solid basis for building up or repairing a bay layout in the warehouse. The coated finish helps the beam stay neat in intensive logistics environments.
Application in the warehouse
The beam is used to create racking bays on which pallet supports or shelves are placed, depending on your setup. Thanks to the included 2 locking pins, the connection is secured, which is important for operational safety and limiting unwanted detachment during daily use.
Practical for replacement or expansion
Ideal for B2B customers who want to quickly replace a damaged beam or expand an existing 2C setup with a matching component. The material thickness of 1.2 mm makes this component suitable for a consistent, professional build-up of your Armes/Ferretto racking material.
Suitable for pallets
With a beam length of 1800 mm, this beam pair provides space for two euro pallets (800 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which equates to an average maximum pallet width of 787.5 mm. This size matches bays specifically set up for this type of pallet.
| SKU | 8D4E18009-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Armes Ferretto |
| Artikelnummer Fabrikant | 8D4E18009 |
| Product Group | Beam |
| Beam Type | GR |
| Condition | New |
| Beam Length | 1800 |
| Height (mm) | 70 |
| Depth (mm) | 50 |
| Thickness (mm) | 1.25 |
| Finish | Coated |
| Delivery Time Indication | 4-6 weeks |
