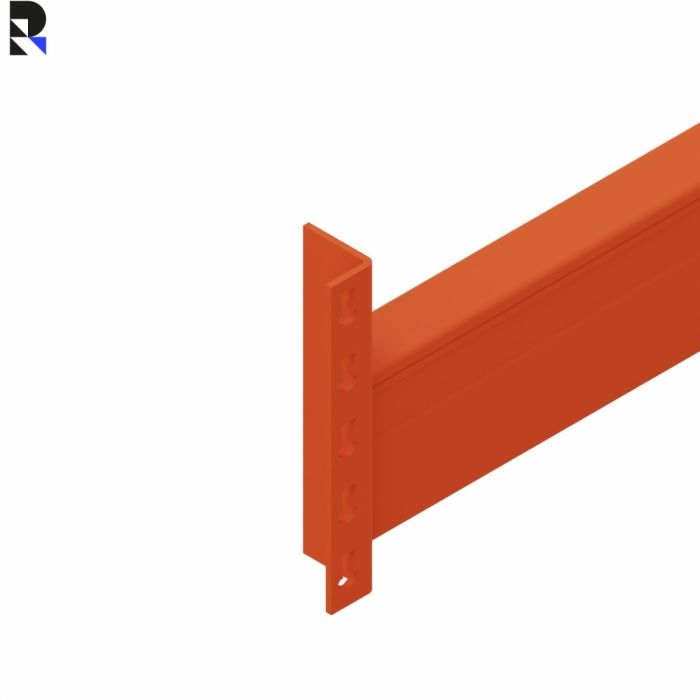

Nedcon beam CC1304015A - 3300 x 130 x 40
Nedcon 2C-beam 3300 mm for pallet racking
New Nedcon beam CC1304015A (3300 x 130 x 40 mm) as a replacement beam for pallet racking during repair or expansion, incl. 2 locking pins.
Specifications Nedcon beam CC1304015A
- Type: 2C-beam
- Length: 3300 mm
- Dimensions: 130 x 40 mm
- Material thickness: 1.5 mm
- Incl.: 2 locking pins
- Condition: new
- Suitable for: three euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side
Nedcon beam CC1304015A - 3400 x 130 x 40
Previous
Robust beam as a reliable basis for your pallet racking
This new Nedcon 2C-beam is intended as a load-bearing beam in pallet racking and forms the connection between two uprights. With a length of 3300 mm and a profile of 130 x 40 mm, it supports a stable and safe storage structure. The beam is supplied including 2 locking pins, allowing you to properly secure the connection and help prevent unwanted lifting.
Application in the warehouse
In daily use, the quality of the beam directly determines the reliability of your racking capacity. This type of 2C-beam from Nedcon is used on beam levels where pallets are placed and moved, and is suitable for professional warehouse environments where consistency in dimensions and assembly is important.
Practical for replacement or expansion
Ideal when you want to repair or expand an existing Nedcon setup with a matching beam from the same series. Type CC1304015A offers a practical solution for B2B buyers who want to quickly add or replace one or more beams, with included locking pins for immediate installation.
Suitable for pallets
With a beam length of 3300 mm, this beam pair accommodates three euro pallets (800 x 1200 mm) or three block pallets (1000 x 1200 mm) side by side. According to the NEN-EN 15512 standard, a minimum clearance of 75 mm between pallets is maintained, which corresponds to an average maximum pallet width of 1000 mm. Alternatively, a combination of 1 euro pallet and 2 block pallets (three pallets in total) also fits. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | CC1304015A-3300-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Nedcon |
| Artikelnummer Fabrikant | CC1304015A-3300 |
| Product Group | Beam |
| Beam Type | CC1304015A |
| Condition | New |
| Beam Length | 3300 |
| Height (mm) | 130 |
| Depth (mm) | 40 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2008 |
| Delivery Time Indication | 4-6 weeks |
