Nedcon beam CC1104015A - 2000 x 110 x 40

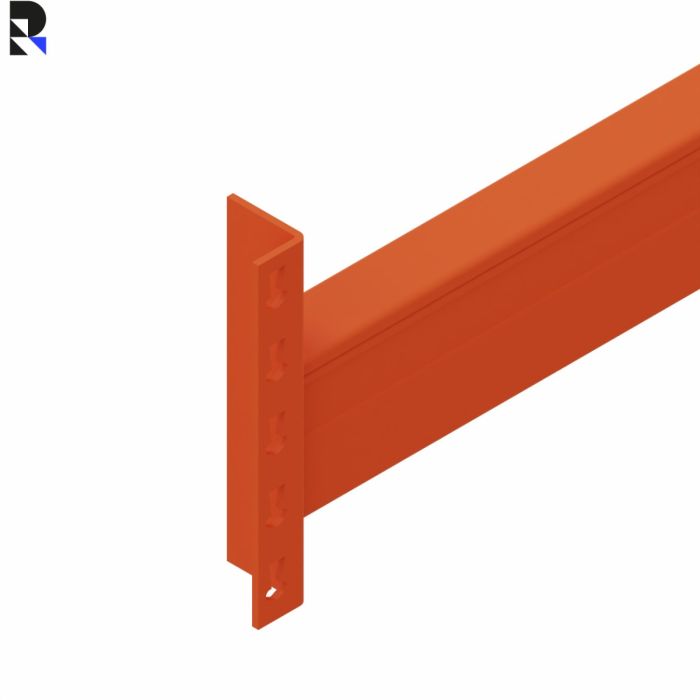

New Nedcon beam 2000 mm (CC1104015A)
New Nedcon beam CC1104015A for pallet racking. Size 2000 x 110 x 40 mm, material thickness 1.5 mm, supplied with 2 locking pins.
Specifications Nedcon beam
- Brand: Nedcon
- Type: CC1104015A
- Condition: new
- Dimensions: 2000 x 110 x 40 mm
- Material thickness: 1.5 mm
- Includes: 2 locking pins
- Suitable for: two euro pallets (800 x 1200 mm) side by side
Nedcon beam CC1104015A - 2225 x 110 x 40
Previous
New beam for quick replacement or expansion of your pallet racking
This new Nedcon beam of type CC1104015A is intended as a horizontal support beam in a pallet racking system and, together with the uprights, forms the level on which pallets are safely stored. With a length of 2000 mm and a profile of 110 x 40 mm, this is a practical choice for warehouses that want to maintain a Nedcon racking configuration with matching components. The material thickness of 1.5 mm contributes to a robust construction. Supplied including 2 locking pins for secure locking.
Application in the warehouse
A beam connects two uprights and determines the bay width and layout of your storage. This version is suitable for restoring a level, bringing back a neat bay size, and ensuring safe handling with a forklift or reach truck.
Practical for replacement or expansion
For companies that value continuity, this is an efficient choice for maintenance or refurbishment of an existing racking system. You replace specifically with the correct Nedcon beam and maintain consistent dimensions, so your racking materials remain uniform and operational.
Suitable for pallets
With a beam length of 2000 mm, this pair of beams provides space for two euro pallets (800 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between pallets is maintained, corresponding to an average maximum pallet width of 887.5 mm. Alternatively, a combination of 1 euro pallet and 1 block pallet (two pallets total) also fits. This size matches bays specifically configured for this type of pallet.
| SKU | CC1104015A-2000-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Nedcon |
| Artikelnummer Fabrikant | CC1104015A-2000 |
| Product Group | Beam |
| Beam Type | CC1104015A |
| Condition | New |
| Beam Length | 2000 |
| Height (mm) | 110 |
| Depth (mm) | 40 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2008 |
| Delivery Time Indication | 4-6 weeks |
