Nedcon beam CC0904015A - 2225 x 90 x 40
Nedcon beam 2225x90x40 mm (new)

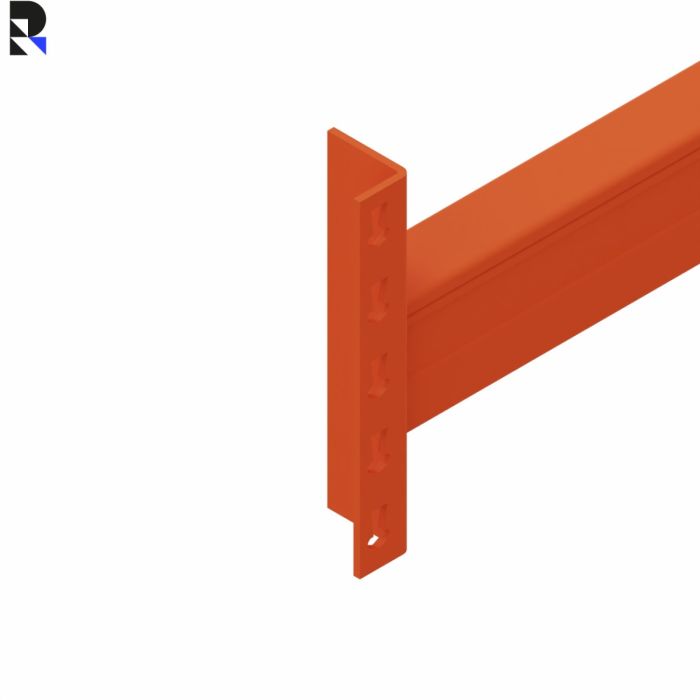

New Nedcon beam CC0904015A for pallet racking, suitable for replacement or expansion; 2225 mm long with 90x40 mm profile for sturdy shelf support.
Specifications
- Type: 2C beam
- Dimension: 2225 x 90 x 40 mm
- Material thickness: 1.5 mm
- Condition: new
- Incl.: 2 locking pins
- Suitable for: two block pallets (1000 x 1200 mm) side by side
Nedcon beam CC0904015A - 2700 x 90 x 40
Previous
Robust Nedcon beam as a safe support point for your pallet racking
This new Nedcon beam is a reliable pallet racking component for building or restoring a stable beam pair in your warehouse racking. With a length of 2225 mm and a profile of 90 x 40 mm, it quickly provides the right span and support structure within a Nedcon pallet racking system. The included 2 locking pins help to properly secure the beam after installation.
Application in the warehouse
A beam forms the horizontal connection between the uprights and determines the bay width and the level at which pallets are stored. This type of 2C beam is used when setting up new locations or replacing damaged beams, so that the racking can be safely and functionally used again.
Practical for replacement or expansion
For technical services and warehouse managers, this is an efficient choice for expansion or maintenance: a common size, clear design and material thickness of 1.5 mm, supplied complete with locking pins for a neat, secure installation.
Suitable for pallets
With a beam length of 2225 mm, this beam pair provides space for two block pallets (1000 x 1200 mm) side by side. In accordance with NEN-EN 15512, a minimum clearance of 75 mm between the pallets is maintained, corresponding to an average maximum pallet width of 1000 mm. As an alternative, a combination of 1 euro pallet and 1 block pallet (two pallets total) also fits. This length is often chosen for racking bays with a fixed, uniform pallet layout.
| SKU | CC0904015A-2225-N |
|---|---|
| Verwachte levertijd | 4-6 weken |
| Country of Manufacture | Netherlands |
| Manufacturer | Nedcon |
| Artikelnummer Fabrikant | CC0904015A-2225 |
| Product Group | Beam |
| Beam Type | CC0904015A |
| Condition | New |
| Beam Length | 2225 |
| Height (mm) | 90 |
| Depth (mm) | 40 |
| Thickness (mm) | 1.5 |
| Finish | Coated |
| Color | RAL 2008 |
| Delivery Time Indication | 4-6 weeks |
