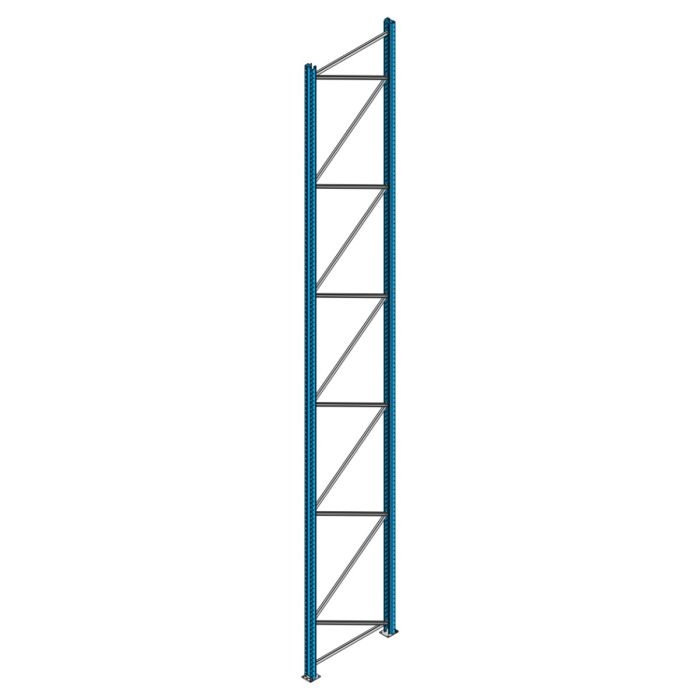

Stow Frame PNFB 13 - 7250x1100 mm - compleet
Stow complete frame Type 13 PNFB 13 7250x1100 mm
New Stow frame for pallet racking: complete Type 13 PNFB 13, 7250x1100 mm. Ideal as replacement or extension; supplied unassembled with bracing, base plates and fastening material.
Stow frame specifications
- Type: PNFB 13 / Type 13
- Size: 7250x1100 mm
- 2 uprights PNUPA 13 (85x65 mm)
- Incl. 2 base plates, horizontal/diagonal bracing
- Incl. fastening material, unassembled
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 9% | €238.99 | |
| 20 | 14% | €226.99 | |
| 40 | 16% | €220.99 |
Stow Frame PNFB 13 - 7000x1100 mm - compleet
Previous
Complete frame as solid basis for stable pallet racking
This complete Stow frame of Type 13 forms the load-bearing side of your pallet racking and is designed for safe, stable assembly of racking bays. With an assembled size of 7250 x 1100 mm, this frame is suitable for warehouses where the height and depth of the racking bay are decisive for storage capacity and accessibility. The frame consists of two uprights PNUPA 13 with profile dimensions 85 x 65 mm, including base plates, bracing and the required fastening material.
Application in the warehouse
A frame is installed as an upright structure onto which beams are hooked, creating a complete pallet racking system. The combination of horizontal and diagonal bracing contributes to the rigidity of the structure, which is important under load, impact risk and daily handling with forklifts.
Practical for replacement or extension
Ideal for B2B buyers who want to extend an existing Stow setup or replace a damaged frame without having to assemble loose parts. Delivery is standard unassembled, unless otherwise ordered, which simplifies transport and internal assembly planning.
Possible beam configurations and pallet heights
For a frame height of 7250 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
3 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2400 | 2250 | 2150 |
| 1st beam | 4800 | 2250 | 2150 |
| 2nd beam | 7150 | 2200 | 2100 |
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3600 | 1650 | 1550 |
| 2nd beam | 5400 | 1650 | 1550 |
| 3rd beam | 7150 | 1600 | 1500 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1450 | 1300 | 1200 |
| 1st beam | 2900 | 1300 | 1200 |
| 2nd beam | 4350 | 1300 | 1200 |
| 3rd beam | 5750 | 1250 | 1150 |
| 4th beam | 7150 | 1250 | 1150 |
| SKU | PNFB 13-725-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PNFB 13-725-11 |
| Product Group | Complete Frames |
| Frame Type | PNFB 13 |
| Condition | New |
| Length (mm) | 7250 |
| Width (mm) | 85 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
