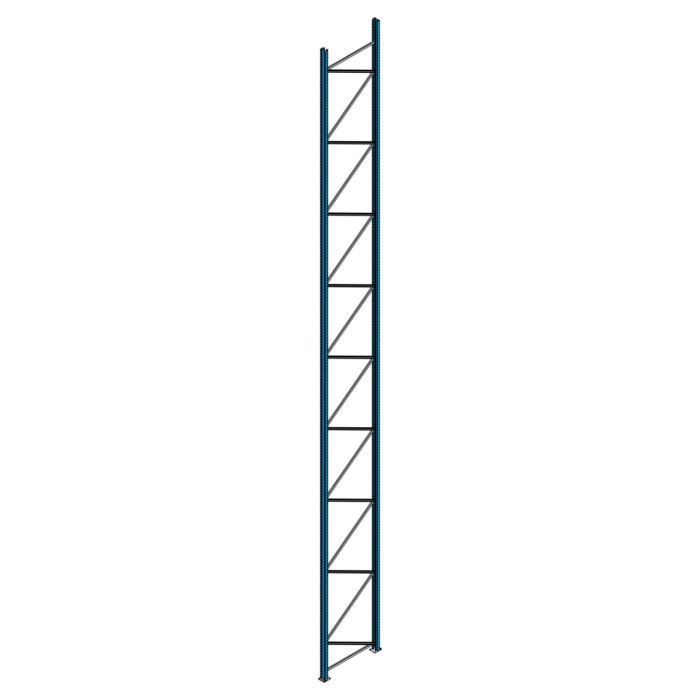

Stow Frame PLFB 30 - 11000x1100 mm - compleet
Complete Stow frame PLFB 30 11000x1100 mm
New complete Stow pallet racking frame Type 30 for repair/extension of warehouse racking systems. Supplied as an unassembled frame with uprights, bracing and fastening materials.
Specifications
- Brand: Stow, PLFB/PLUPA 30
- Dimensions: 11000x1100 mm
- 2 uprights 120x92 mm
- 2 base plates
- Horizontal + diagonal bracing
- Incl. fastening materials
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 4% | €540.14 | |
| 20 | 7% | €528.14 | |
| 40 | 8% | €522.14 |
Stow Frame PLFB 30 - 10750x1100 mm - compleet
Previous
Robust frame as stable base for your Stow pallet racking
This complete Stow frame is intended as the load-bearing side section of a pallet racking system and forms the foundation for a safe and level installation of your storage system. This is a Type 30 frame with an assembled dimension of approximately 11000 x 1100 mm, constructed with two PLUPA 30 uprights (120 mm wide, 92 mm deep), including base plates, horizontal and diagonal bracing, and matching fastening materials.
Application in the warehouse
Frames determine the height, depth and stability of the racking and are coupled with beams to create bays for pallet storage. This frame is suitable for applications requiring a solid, braced structure, for example in intensive use in logistics, production or wholesale operations.
Practical for replacement or extension
Convenient for replacing damaged uprights or expanding an existing Stow installation. Delivery is unassembled, unless otherwise ordered, which keeps transport and handling on-site efficient.
Possible beam configurations and pallet heights
For a frame height of 11000 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
4 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2750 | 2600 | 2500 |
| 1st beam | 5500 | 2600 | 2500 |
| 2nd beam | 8200 | 2550 | 2450 |
| 3rd beam | 10900 | 2550 | 2450 |
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2200 | 2050 | 1950 |
| 1st beam | 4400 | 2050 | 1950 |
| 2nd beam | 6600 | 2050 | 1950 |
| 3rd beam | 8750 | 2000 | 1900 |
| 4th beam | 10900 | 2000 | 1900 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1850 | 1700 | 1600 |
| 1st beam | 3700 | 1700 | 1600 |
| 2nd beam | 5500 | 1650 | 1550 |
| 3rd beam | 7300 | 1650 | 1550 |
| 4th beam | 9100 | 1650 | 1550 |
| 5th beam | 10900 | 1650 | 1550 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1600 | 1450 | 1350 |
| 1st beam | 3150 | 1400 | 1300 |
| 2nd beam | 4700 | 1400 | 1300 |
| 3rd beam | 6250 | 1400 | 1300 |
| 4th beam | 7800 | 1400 | 1300 |
| 5th beam | 9350 | 1400 | 1300 |
| 6th beam | 10900 | 1400 | 1300 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1400 | 1250 | 1150 |
| 1st beam | 2800 | 1250 | 1150 |
| 2nd beam | 4150 | 1200 | 1100 |
| 3rd beam | 5500 | 1200 | 1100 |
| 4th beam | 6850 | 1200 | 1100 |
| 5th beam | 8200 | 1200 | 1100 |
| 6th beam | 9550 | 1200 | 1100 |
| 7th beam | 10900 | 1200 | 1100 |
| SKU | PLFB 30-1100-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 30-1100-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 30 |
| Condition | New |
| Length (mm) | 11000 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2.5 |
| Material | Steel - S355 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
