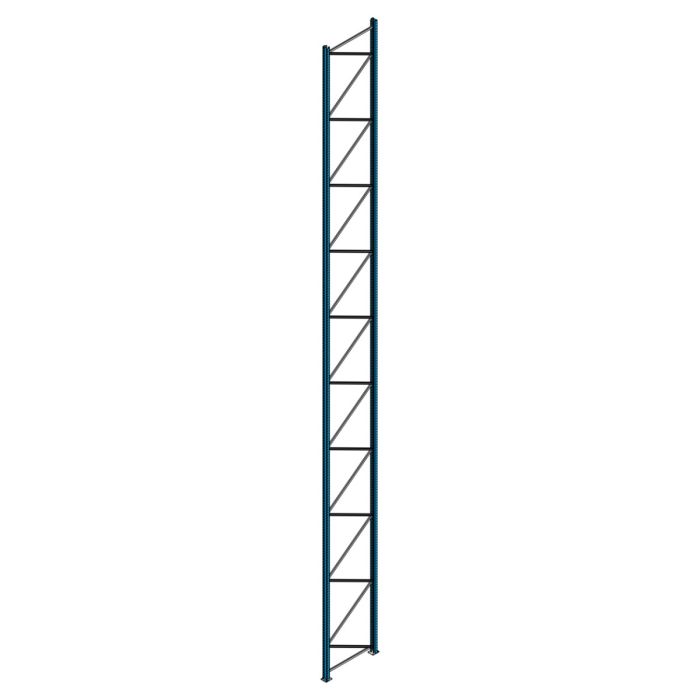

Stow Frame PLFB 29 - 12500x1100 mm - compleet
Stow complete frame Type 29 for pallet racking
New Stow frame PLFB 29 (12500 x 1100 mm) as complete upright section for pallet racking; ideal for replacement or expansion of warehouse storage systems, delivered unassembled.
Specifications Stow Frame PLFB 29
- Assembled dimension: 12500 x 1100 mm
- 2 uprights PLUPA 29: 120 x 92 mm
- Includes 2 base plates, horizontal/diagonal bracing
- Includes fastening material
Staffelkortingen bij grotere aantallen
Meer weten over staffelprijzen?
| QUANTITY | SAVE AMOUNT | PRICE PER ITEM | |
|---|---|---|---|
| 10 | 5% | €527.05 | |
| 20 | 7% | €515.05 | |
| 40 | 8% | €509.05 |
Stow Frame PLFB 29 - 9000x1100 mm - compleet
Previous
Robust frame as a stable foundation for your pallet racking setup
This complete Stow frame Type 29 forms the load-bearing side structure of a pallet racking system and is designed for professional warehouse storage or replacement of damaged uprights. With an assembled dimension of 12500 x 1100 mm, it provides a solid foundation for safe storage, with uprights of type PLUPA 29 (120 mm wide and 92 mm deep) for a sturdy backbone of your racking bay.
Application in the warehouse
A frame carries the beams and determines the depth of the racking. This frame is supplied with base plates, horizontal and diagonal bracing and the corresponding fastening material, so that you can correctly construct the stability and alignment of the racking structure. Standard delivery is in unassembled form, unless otherwise ordered.
Practical for replacement or expansion
For B2B customers, this frame is an efficient choice when expanding existing Stow Type 29 racking systems or when replacing a complete side frame after impact damage. You receive a complete set of components in one delivery, which limits assembly time and helps to get your warehouse capacity operational again quickly.
Possible beam configurations and pallet heights
For a frame height of 12500 mm, the following beam configurations are possible (bay height and maximum pallet height per level, from bottom to top):
5 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2500 | 2350 | 2250 |
| 1st beam | 5000 | 2350 | 2250 |
| 2nd beam | 7500 | 2350 | 2250 |
| 3rd beam | 9950 | 2300 | 2200 |
| 4th beam | 12400 | 2300 | 2200 |
6 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 2100 | 1950 | 1850 |
| 1st beam | 4200 | 1950 | 1850 |
| 2nd beam | 6250 | 1900 | 1800 |
| 3rd beam | 8300 | 1900 | 1800 |
| 4th beam | 10350 | 1900 | 1800 |
| 5th beam | 12400 | 1900 | 1800 |
7 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1800 | 1650 | 1550 |
| 1st beam | 3600 | 1650 | 1550 |
| 2nd beam | 5400 | 1650 | 1550 |
| 3rd beam | 7150 | 1600 | 1500 |
| 4th beam | 8900 | 1600 | 1500 |
| 5th beam | 10650 | 1600 | 1500 |
| 6th beam | 12400 | 1600 | 1500 |
8 beams
| Level | Support height (mm) | Bay height (mm) | Max. pallet height (mm) |
|---|---|---|---|
| Ground level | 1550 | 1400 | 1300 |
| 1st beam | 3100 | 1400 | 1300 |
| 2nd beam | 4650 | 1400 | 1300 |
| 3rd beam | 6200 | 1400 | 1300 |
| 4th beam | 7750 | 1400 | 1300 |
| 5th beam | 9300 | 1400 | 1300 |
| 6th beam | 10850 | 1400 | 1300 |
| 7th beam | 12400 | 1400 | 1300 |
| SKU | PLFB 29-1250-11-N |
|---|---|
| Verwachte levertijd | 3-5 weken |
| Country of Manufacture | Belgium |
| Manufacturer | Stow |
| Artikelnummer Fabrikant | PLFB 29-1250-11 |
| Product Group | Complete Frames |
| Frame Type | PLFB 29 |
| Condition | New |
| Length (mm) | 12500 |
| Width (mm) | 120 |
| Depth (mm) | 1100 |
| Thickness (mm) | 2 |
| Material | Steel - S235 |
| Finish | Coated |
| Color | RAL 5015 |
| Delivery Time Indication | 3-5 weeks |
